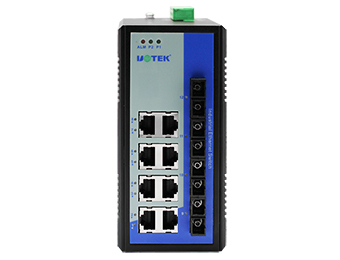

Model： UT-60408F series
● Supports full-duplex or half-duplex, auto negotiation
● Auto 10/100Base-T(X), auto MDI/MDI-X
● Built-in store-and-forward, 8K buffer, supports multiple protocols
● Operating temperature: -40~85℃
● IP40 protection
● Relay output auto alarm function
● dual power input, overload and reverse polarity protection
● Compatible with telecom standard, MTBF>300,000 hours
UT-60408F series are unmanaged industrial Ethernet switches. It supports up to 12 ports, which included 4 Gigabit fiber ports(SC/ST/FC/SFP slot); this enhances the networking flexibility. This switch is low power consumption; the fanless design prevent it from noise interference; at the same time, the operating temperature range is from -40~85℃; and the switch is with good EMC compatibility. These make the switch provides safe and reliable solution for industrial automation, intelligent transportation, video monitoring, and other industrial application networking access.
Remarks:
1. Single-mode dual-fiber SC port is a standard configuration for 100M optic ports of products above mentioned, with optional ST/FC
2. The suffix “F” in “BNF” means 12/24/48VDC（10.8~52.8VDC）power input;
The suffix “D” in “BND” means 110/220VAC/DC（88~264VAC/DC）dual power input
>>Standards
IEEE 802.3, IEEE 802.3u
>>Ports
Fiber port: 100Base-FX(SC/FC/ST)
1000Base-X(SC/FC/ST)
RJ-45 port: 10/100Base-T(X), auto MDI/MDI-X
>>Transmission Distance
Cat.5e: 100m
>>Fiber Patch Cord
Single-mode: 1,310nm 20/40/60Km
1,550nm 20/40/60/80/100/120Km
Multi-mode: 1,310nm 2Km
>>Switching Performance
Forwarding rate:
100M ports: 148,810pps
1000M ports: 1,488,095pps
Transmission mode: store-and-forward
MAC address buffer: 8K
Switching bandwidth: 9.6G
>>Power Requirement
Voltage input: with optional 12/24/48VDC(10.8~52.8VDC) and 110/220VAC(88~264VAC)/50-60Hz or 110/220VDC(88~264VDC)
>>Power Consumption
Fullload: <20W
>>Mechanical Characteristics
IP rating: IP40
Installation: DIN-Rail
|
>> |
|
Dimension
Size(W×H×D): 150 mm×70mm×120mm
>>Environment
Operating temperature: -40℃~85℃
Storage temperature: -40℃~85℃
Relative humidity: 0~95%(non-condensing)
>>Industrial Standards
EMI: FCC Part 15, CISPR (EN55022) class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
