UOTEK 10/100M to 8-Port RS-232/485/422 Serial Device Server

UT-6008 series serial device server provides serial port to Ethernet port function. It converts RS-232/485/422 port to TCP/IP port, allows bidirectional data transmission between RS-232/485/422 & TCP/IP. This makes the serial device support TCP/IP function. It supports IEEE 802.3AF standard, the POE function greatly extend the communication of serial devices.

Feature

● CPU: 150MHz

● Memory: data buffer space(each port) ≥60KB

● Ethernet port: RJ-45, 10/100M(built-in 2KV electromagnetic isolation, surge 10/700us, common mode 2,000V/differential mode 1,000V), auto MDI/MDI-X

● POE, supports IEEE802.3AF

● Protocol: IP, ICMP, UDP, TCP, HTTP, TELNET, DNS, DHCP, SNMP

● System: supports Windows/XP/2003/Win 7/8/10 32/64 bit

● Operating mode: VCOM, TCP SERVER, TCP CLIENT, UDP, Serial Telnet mode, Remote Pair mode, RFC 2217

● Supports 4 hosts simultaneous connection

● Configuration: Web browser, VCOM Utility, Telnet

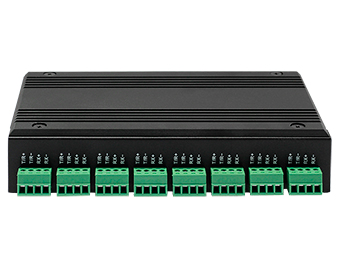

● Serial port x8, RJ-45(UT-6008MT adopts 4-pin terminal block)

● Serial port protection: RS-232/485/422 surge 10/700 us, common mode/differential mode 0.5KV

● Baud rate: 300-921,600bps

● Parity bits: None, Odd, Even, Mark, Space

● Data bits: 7, 8

● Stop bits: 1, 1.5, 2

● Flow control: RTS/CTS, XON/XOFF

● Power: 5V, 12-60VDC, with optional POE function, surge 1.2/50us, common mode 2,000V/differential mode 1,000V

● ESD protection: device contact 6KV, air contact 8KV

● Operating current: 350mA@12V max

● Power port: 5.08mm 3-pin terminal block & DC input

● Operating temperature: -40°C ~ +85°C

● Storage temperature: -40°C ~ +85°C

● Relative humidity: 5% ~95%(non-condensing)
