Product name：

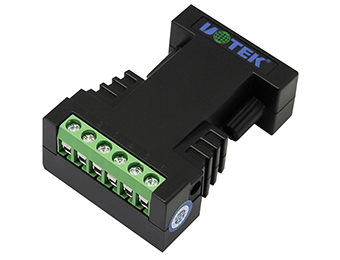

UOTEK RS-232 to RS-485/422 Converter with Lightning Surge Protection

Model： UT-242E

● Standards: RS-232C, RS-485/422 EIA/TIA

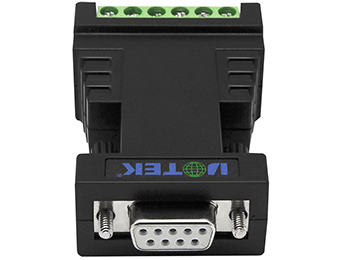

● RS-232 DB9 female connector, RS-485 DB9 male connector, with terminal block

● Operating mode: asynchronous half-duplex, differential transmission, no need jumper setting

● Transmission media: twisted-pair or shielded cable

● Baud rate: 300bps-115.2kbps

● Dimension: 62mm×40.5mm×21mm

● Operating temperature: -40℃ to 85℃

● Relative humidity: 5% to 95%

● Transmission distance: 1,200m (RS-485/422); 5m (RS-232)

● Protection: 2KA lightning surge protection

Overview Parameter Download Get a quote

For communication between PC with different standard serial port and external equipments or intelligent instruments, standard serial conversion is necessary. This converter is compatible with RS-232C, RS-485/422 standards. It converts RS-232 signals into balanced differential RS-485 or RS-422 signals. The transmission distance of RS-232 communication can be extended to 1.2km. It adopts unique “RS-232” charge pump technology to drive the system, and gains power without initializing RS-232 serial port. This converter is with built-in zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR); this guarantees that there is no need to modify the programming under RS-232 full duplex or half duplex mode, it will run smoothly under RS-485/422 mode, ensure to suitable for current software and hardware. The transmission rate is 300-115.2kbps. It can be used between hosts, host and SCM, which building a point to point, point to multipoint long-distance communication networking. It is widely applied in industrial automation control system, all-in-one card, access control system, parking system, ATM system, bus charging system, canteen ticketing system, attendance system, and toll station system, etc.

UT-242E Datasheet
