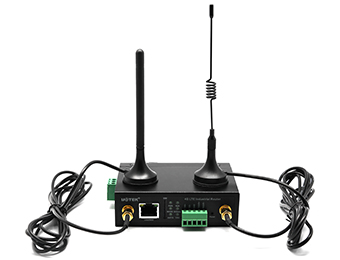

UOTEK 4G LTE Industrial Router

As an industrial LTE router, UT-9101 is a DTU device based on the Qualcomm MDM9X07 platform. It supports 4G, WIFI, AP functions. It provides a 10M/100M/1000M Ethernet port, auto-negotiation, automatically assigns IP addresses. PC can use 4G network function by this device after connecting with a network cable.

This DTU router provides RS232/485 port, which can be used as DTU transparent data transmission. Users can set the parameters through WEB configuration. With high industrial standard design and surge protection, this 4g LTE industrial router is widely used in industrial control, data communication system, and industrial automation.

Learn more about UT-9101 4G LTE Industrial Router

Specification

Supports 4G network

Supports IEE 802.11 b/g/n

1x RS-232/485 port, 1,200bps-115,200bps transmission rate

1x 10M/100M/1000M Ethernet port

Working temperature: 12-36V DC

Working current: ≤ 300mA@12V

Operating temperature: -40~+85℃

Storage temperature: -40~+85℃

Operating humidity: 5~95%(non-condensing)

Storage humidity: 5~95%(non-condensing)

Antenna impedance: 50Ω（2m sucker antenna）

ESD protection: Air 8kV, contact 6kV

Electrical fast transient pulse: 2kV

Surge protection: power port: 1.2/50us common mode 2kV, differential mode 1kV

             Ethernet port: 10/700us common mode 2kV, differential mode 1kV
