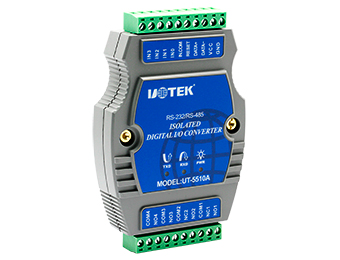

Model： UT-5510A
● Four-channel opto-electronic isolation voltage input & four-channel opto- isolated relay output
● Operating power: 9-30VDC/350mA
● Isolated voltage: 2500V rms
● Isolated voltage input：0 ~ 24V
● Max. contact capacity (DC): 110VDC 0.3A 30VDC 1A
● Max. contact capacity (AC): 5-250VAC(47-63Hz)
● Interface: 10-bits terminal block
● Dimension: 120mm×80mm×25mm
● Operating temperature: -40℃ to +85℃,
● Relative Humidity：5% ~ 95%RH，non-condensation
● Work with all communication software, plug-and-play
● Support DOS/WIN95/WIN98/WIN2000/NT/XP
UT-5510A optoelectronic isolation data-parallel I/O controller is an interface with 8-bit, 4-channel data input and output; each data input or output channel is similar to several computer interfaces. In this optoisolator relay, the module can be remotely controlled by a series of commands via Modbus-RTU protocol, and communicates with the host by command data via RS-485 serial bus.
The communication baud rate is software-configurable, and the maximum transmission rate is up to 115200bps, using a 4-channel wireless relay.
>>Applications
●Multi-channel status signal monitoring
●Parallel data transmission communication
●Industrial automation control
●Lab automation control
●Multi-channel conversion control
●Inductive electric eye monitoring
●Automated production line control
●Automated testing control
>>Connectors and Signals
Connector Assignment
The controller use 10-pin terminal blocks as I/O interface,and the pin assignments are as follow
