Model： UT-6405C
● Adopt high quality opt electric integration modules to provide good optical and electrical characteristics, ensure reliable data transmission and long lifecycle
● Supports full-duplex and half-duplex, auto negotiation
● Auto-10/100Mbps
● Fully automatic recognition of network interface, no need to manually operate switches
● Plug and play for easy access
● Operating temperature: -20~75°C
● Input voltage: 12/24/48VDC(10.8-52.8VDC), support reverse connection protection

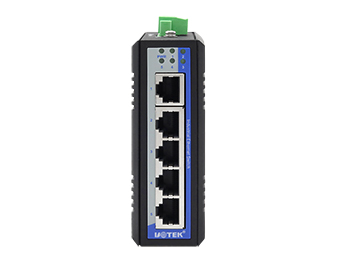

UT-6405C is a 5-port 100-M unmanaged Ethernet switch that provides positive and negative AC/DC input protection to prevent burnout of the instrument. It has a compact design and supports industry standard DIN-rail mounting, so it is easy to install in any industrial network application.
>>Protocol Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
>>Interfaces
RJ45 ports: 5 10/100Base-T (X) ports, auto-detection, full/half duplex, auto MDI/MDI-X
>>LED indicator light
PWR power light, network indicator
>>Power Requirement
Input voltage: 12/24/48VDC(10.8~52.8VDC)
Interface terminal: 1 pluggable 3-pin terminal
Overload protection: Support
Reverse connection protection: Support
>>Consumption
Power consumption: 100mA@24Vmax
>>Switching Performance
Forwarding rate: 148810pps
Transmission mode: store and forward
MAC address size: 1K
Cache size: 448Kb
Backplane bandwidth: 1.6G
>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail Mounted
>>Mechanical Dimension
Dimension (W x H x D): 180mm x 140mm x 45mm
Weight: 560g
>>Operating Environment
Operating temperature: -20~75°C
Storage temperature: -40~85°C
Relative humidity: 0~95% (non-condensing)
>>Industrial Standards
EMI:
FCC Part 15 Subpart B classA͘EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
