Model： UT-62107C Series
● Full-duplex or half-duplex mode, auto negotiation
● 10/100Mbps, auto-MDI/MDI-X
● Store and forward
● Plug and play, easy to use
● Wide operating temperature range: -40°C ~ 75°C
● Wide voltage input range: 12/24/48VDC (10.8~52.8VDC), with reverse polarity protection

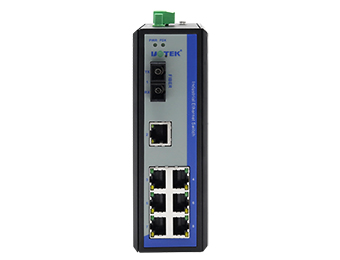

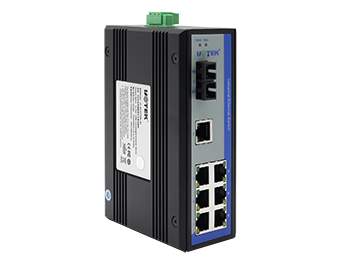

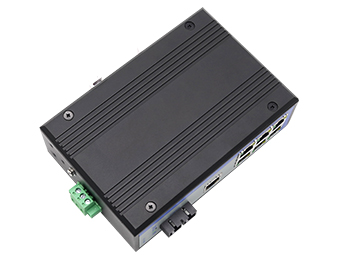

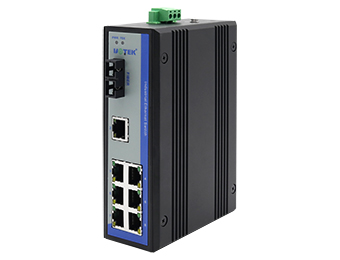

UT-62107C is an 8-port 100M unmanaged Ethernet switch. It provided 7 10/100Base-T(X) copper ports and 1 100Base-FX fiber port, plug & play. It is used for data communication between 100Base-TX twisted pair and 100Base-FX fiber cable, which is suitable for intelligent residential district or fiber to desktop connection. It extends the transmission distance from 100M(twisted pair) to 100KM or above, and it realize the data communication among in server, repeater, hub, terminals.
Standard
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX & 100Base-FX
Interface
Fiber port: 1* 100Base-FX(with optional SC/ST/FC)
RJ-45 port: 7*10/100Base-TX, auto detection, full/half-duplex, auto-MDI/MDI-X
LED indicator
PWR, FDX, RJ-45 indicator
Power requirement
Input voltage: 12/24/48VDC (10.8~52.8VDC)
Power consumption: 100mA@24Vmax

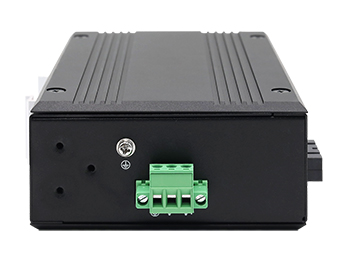

Interface terminal: 1 pluggable 3-pin terminal block
Overload protection: Support
Reverse polarity protection: Support
Switch property
Forwarding rate: 148,810pps
Transmission mode: Store-and-forward
MAC address space: 1K
Cache size: 448Kb
Switching bandwidth: 1.6G
Mechanical characteristic
IP rating: IP40

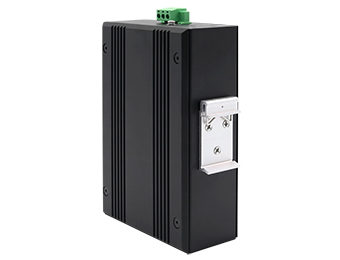

Installation: DIN-rail/wall mounting
Dimension(W x H x D): 150mmx47.6mmx100mm
Packaging dimension
250mmx205mmx55mm
Operating Environment
Operating temperature: -40℃ ~ 75℃
Storage temperature: -40℃ ~ 85℃
Relative humidity: 0 ~ 95% (non-condensing)
Industrial standard
EMI: FCC Part 15 Subpart B classA, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
