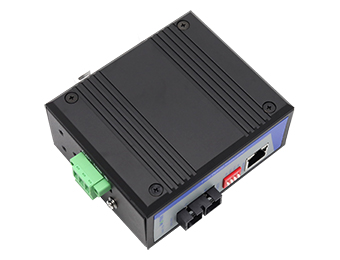

Model： UT-2601-220
● Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics, ensure reliable data transmission and long lifecycle
● Supports full-duplex and half-duplex, auto negotiation
● Auto-10/100Mbps
● Fully automatic recognition of network interface
● Plug and play for easy access
● Operating temperature: -40 ~ 85℃
● Support various fiber optic interfaces(SC/ST/FC/SFP)
UT-2601-220 series is a 100M network fiber optic transceiver, providing one 10/100Base-TX Ethernet ports and one 100Base- FX optical port; it is used for Ethernet port and optical cable data communication, it is suitable for the scenarios of intelligent community or FTTD(fiber to the desk).The series of products support -40 ~ 85 ℃ operating temperature and good EMC performance to ensure normal operation in harsh environments, the series will greatly extend the distance of network transmission, can easily achieve the interconnection between the main board server, repeater, hub, terminal and terminal, for video surveillance, finance, education and other industries to form a network to provide cost-effective, safe and reliable solutions.
>>Protocol Standards
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX & 100Base-FX
>>Interfaces
Fiber interfaces: 1*100Base-FX（SC/FC/ST）
RJ45 interface: 1*10/100Base-TX, auto detection, full/half-duplex,
auto MDI/MDI-X
Draw switch: 10M/100M rate, DPX2 optical port operating status, DPX1 electrical port operating status, LFP optical port and electrical port connection status detection switch
>>Transmission distance
Cat.5e: 100m
Fiber Optic Module
Single-mode: 1310nm 20/40/60Km
1550nm 20/40/60/80/100/120Km
Multimode: 1310nm 2Km
>>LED indicator light
PWR, FDX, DPX2 optical port full/half duplex, DPX1 electrical port full/half duplex, RJ network
For example: UT-2601RSM-SC-40-220, “R”is receiving single fiber, “SM” is single mode, “SC” fiber interface type is SC head, “40” transmission km for 40km
>>Switching Performance
Forwarding Rate: 148810pps
Transmission mode: Direct Forward
MAC address size: 1K
Cache size: 288Kb
Max. frame length: 9K
>>Power Requirement
Voltage input: 110/220VAC(88-264VAC)50-60Hz or110/220VDC (88-264VDC)
>>Power consumption
No load: 3.2 W@220VAC
Full load: 4.3 W@220VAC
Terminal block: One pluggable 3-pin terminal block
>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail Mounted
>>Mechanical Dimension
Dimension (W x H x D): 100mm x 80mm x 35mm
Weight: 400g
Packaging dimension: 180mm x 140mm x 45mm
>>Operating Environment
Operating temperature: -40 ~ 85℃
Storage temperature: -40 ~ 85℃
Relative humidity: 0 ~ 95%
>>Industrial Standards
EMI:
FCC Part 15 Subpart B class A, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
