Model： UT-2601G-220
● Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics, ensure reliable data transmission and long lifecycle
● Supports full-duplex and half-duplex, auto negotiation
● Auto-10/100/1000Mbps
● Fully automatic recognition of network interface
● Plug and play for easy access
● Operating temperature: -40 ~ 85°C
● Voltage input: 110/220VAC (88~264VAC)/50-60Hz or 110/220VDC (88~264VDC) This device supports dual power redundant input
UT-2601G-220 series is a Gigabit network fiber optic transceiver, providing 1 10/100/1000Base-T Ethernet ports and 1 1000Base- X optical port; it is used for Ethernet port and optical cable data communication, it is suitable for the scenarios of intelligent community or FTTD(fiber to the desk).The series of products support -40 ~ 85°C operating temperature and good EMC performance to ensure normal operation in harsh environments, the series will greatly extend the distance of network transmission, can easily achieve the interconnection between the main board server, repeater, hub, terminal and terminal, for video surveillance, finance, education and other industries to form a network to provide cost-effective, safe and reliable solutions.
>>Protocol Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
>>Interfaces
Fiber interfaces: 1*1000Base-X（SC/FC/ST）
RJ45 interface: 1*10/100/1000Base-T, auto MDI/MDI-X
>>Transmission distance
Cat.5e: 100m

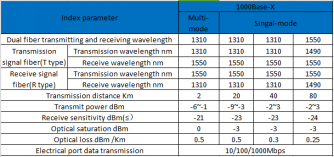

Fiber Optic Module
Single-mode: 1310nm 20/40/60Km
1550nm 80/100/120Km
Multimode: 1310nm 2Km
>>Switching Performance
Forwarding Rate: 1488095pps
Transmission mode: Store and Forward
MAC address size: 1K
Cache size: 1Mb
Backplane bandwidth: 4G
Max. frame length: 10K
>>Power Requirement
Voltage input: 110/220VAC(88-264VAC)50-60Hz or110/220VDC (88-264VDC)
Power consumption: 5W

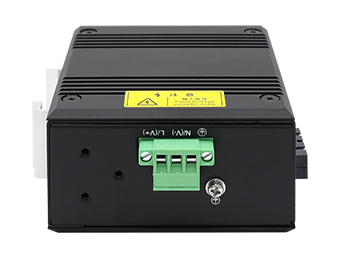

Terminal block: One pluggable 3-pin terminal block
>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail/Wall Mounted
>>LED indicator light
PWR, FDX, RJ network
For example: UT-2601RSM-SC-40-220, “R”is receiving single fiber, “SM” is single mode, “SC” fiber interface type is SC head, “40” transmission km for 40km
>>Mechanical Dimension
Dimension (W x H x D): 100mm x 85mm x 47mm
Weight: 560g
Packaging dimension: 190mm x 182mm x 65mm
>>Operating Environment
Operating temperature: -40 ~ 85°C
Storage temperature: -40 ~ 85°C
Relative humidity: 0 ~ 95%
>>Industrial Standards
EMI:
FCC Part 15 Subpart B class A, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
