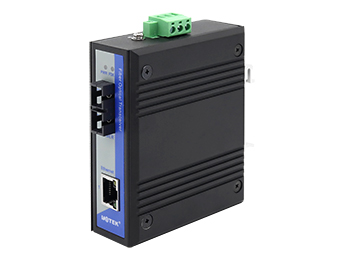

Model： UT-2671G
● Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics, ensure reliable data transmission and long lifecycle
● Supports full-duplex and half-duplex, auto negotiation
● Auto-10/100/1000Mbps
● Fully automatic recognition of network interface
● Plug and play for easy access
● Operating temperature: -40 ~ 85°C
● Input voltage:12/24/48VDC(10.8~52.8VDC), supports reverse polarity protection
● Support various fiber optic interfaces(SC/ST/FC/SFP)
UT-2601G series is a Gigabit network fiber optic transceiver, providing 1 10/100/1000Base-T Ethernet ports and 1 1000Base- X optical port; it is used for Ethernet port and optical cable data communication, it is suitable for the scenarios of intelligent community or FTTD(fiber to the desk).The series of products support -40 ~ 85°C operating temperature and good EMC performance to ensure normal operation in harsh environments, the series switch will greatly extend the distance of network transmission, can easily achieve the interconnection between the main board server, repeater, hub, and terminal, for video surveillance, finance, education and other industries to build a network to provide cost-effective, safe and reliable solutions.
>>Protocol Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
>>Interfaces
Fiber interfaces: 1*1000Base-X（SC/FC/ST/SFP）
RJ45 interface: 1*10/100/1000Base-T, auto detection, full/half-duplex, auto MDI/MDI-X
>>Switching Performance
Forwarding Rate: 148810pps
Transmission mode: Store and Forward
MAC address size: 1K
Cache size: 1Mb
Backplane bandwidth: 12G
Max. frame length: 10K
>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail Mounted
>>Mechanical Dimension
Dimension (W x H x D): 100mm x 80mm x 35mm
Weight: 0.45kg
Packaging dimension: 180mm x 140mm x 45mm
>>LED indicator light
PWR, FDX
For example: UT-2671GRSM-SC-40, “R”is receiving single fiber, “SM” is single mode, “SC” fiber interface type is SC head, “40” transmission km for 40km
Fiber core diameter:
Multi-mode: 50/125, 62.5/125, Single-mode: 8.3/125, 9/125, 10/125.
>>Power Requirement
Voltage input: 12/24/48VDC(10.8~52.8VDC)
Power consumption：100mA@24Vmax
Terminal block: One pluggable 3-pin terminal block
Overload protection: Support
Reversal protection: Support
>>Operating Environment
Operating temperature: -40 ~ 85°C
Storage temperature: -40 ~ 85°C
Relative humidity: 0 ~ 95%
Industrial Standards
EMI:
FCC Part 15 Subpart B class A, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
