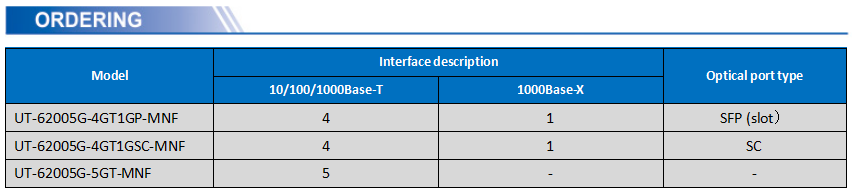

Model： UT-62005G Series
● Supports multiple combination of fast Ethernet ports and fiber ports(SFP slot/ST/FC/SC)
● Supports IGMP Snooping filter multicast packets
● Supports IEEE 802.1Q VLAN
● Supports QoS(IEEE 802.1p/1Q) & TOS/DiffServ
● Supports STP/RSTP & MSTP network redundancy, SNMP v1/v2/v3
● Support UT-Ring function
● Support 802.1X
● Supports link aggregation
● Supports port mirroring function, convenient for online debug
● Supports port transmission rate limitation, broadcast storm/multicast storm/uncertain unicast storm suppression
● Supports power, port abnormal status relay output alarm function
● Operating temperature: -40~85 °C

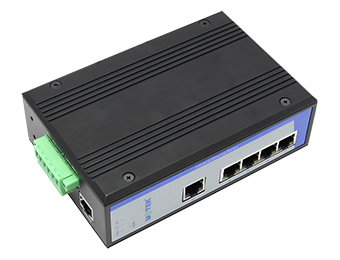

UT-62005G series 5-port full Gigabit managed Ethernet switch contains 5 Gigabit interfaces, supporting 4 10/100/1000Base-T and 1 port optical optional. The Ethernet switches are highly flexible and can transmit data over long distances via fiber optic ports. The series switches support multiple management functions (CLI/Web/Console port, etc.), expandable backbone network structure and Power over Ethernet, and high EMI resistance to ensure stable operation in harsh industrial environments for industrial applications such as industrial automation, intelligent transportation, and video surveillance.
>>Protocol Standards
Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab,
IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D,IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x.
Protocols: ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/ MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, NTP, RMON, Syslog. RMON, Syslog
Flow control: IEEE802.3x flow control, backpressure flow control
>>Switching Performance
Forwarding rate: 1,488,095pps
Transmission mode: store and forward
MAC address size: 1K
Cache size: 1Mb
Backplane bandwidth: 12G
Max. frame length: 10KB
>>Transmission Distance
Cat.5e: 100m
Fiber Patch Cord
Single-mode: 1,310nm 20/40/60Km
1,550nm 80/100/120Km
Multi-mode: 1,310nm 2Km
>>Interfaces
Fiber port: 1000Base-X(SC/ST/FC/SFP slot)
RJ-45 port: 10/100/1000Base-T
LED indicator :Power indicator, optical port indicator, RJ-45 indicator, alarm indicator, operation indicator.
>>Power Requirement
Voltage input:
with optional 12/24/48VDC(10.8~52.8VDC) Redundant inputs support reverse connection protection
1 pluggable 6-pin terminal block
>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail / Wall Mounted
>>Mechanical Dimension
Dimension (W x H x D): 150mm x 47.6mm x 100mm
Weight: 730g
Packaging dimension: 250mm x 205mm x 55mm
>>Operating Environment
Operating temperature: -40 ~ 85 °C
Storage temperature: -40 ~ 85°C
Relative humidity: 0~95% (non-condensing)
>>Power consumption
Max. input power consumption 250mA@24Vmax
>>Industrial Standards
EMI ：
FCC Part 15，CISPR (EN55022) class A
EMS：
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
