Model： UT-62204
● Supports full-duplex or half-duplex, auto negotiation
● Auto 10/100Mbps
● Fully automatic recognition of network interface
● Built-in store-and-forward mechanism
● Operating temperature: -40 ~ 85°C
● Ultra-wide voltage input: 12/24/48VDC(10.8~52.8VDC),support reverse connection protection
● Support dual DC redundant power input, overload protection
UT-62204 series are 6-port 100M unmanaged Ethernet switches, which all have 4 10/100Base-T(X) Ethernet interface and 2 100Base-FX port, plug-and-play; used for data communication between 10/100Base-T(X) twisted pair and 100 Base-FX cable, most suitable for intelligent cell or fiber to desktop connector, automatically adapts to the transmission rate of 10Mbps and 100Mbps, which is convenient for users to upgrade. It extends the limit of network transmission distance from 100M of twisted-pair cable to more than 100KM, which can easily realize the interconnection between motherboard servers, repeaters, hubs, terminals and terminators.
>>Protocol Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX and 100Base-FX
>>Interfaces
Fiber optic interface: 2 100Base-FX port (optional SC, ST, FC)
RJ45 port: 4 10/100Base-TX ports, auto-detection, full/half duplex, auto-MDI/MDI-X
>>Switching Performance
Forwarding rate: 148810pps
Transmission mode: store and forward
MAC address size: 2K
Cache size: 1Mb
Backplane bandwidth: 2G
>>LED indicator light
Power indicator, power failure light, fiber optic indicator, RJ-45 indicator
Alarm contacts: 1 relay output, normally open and normally closed capacity 1A @ 24VDC
>>Power Requirement
Voltage input: 12/24/48VDC(10.8~52.8VDC), Dual power redundant input
Interface terminal: 1 pluggable 6-pin terminal block
Overload protection: Support
Reverse connection protection: Support
>>Power consumption
300mA@24Vmax
>>Mechanical Characteristics
IP protection level: IP40
Installation: DIN-Rail /WALL Mounted

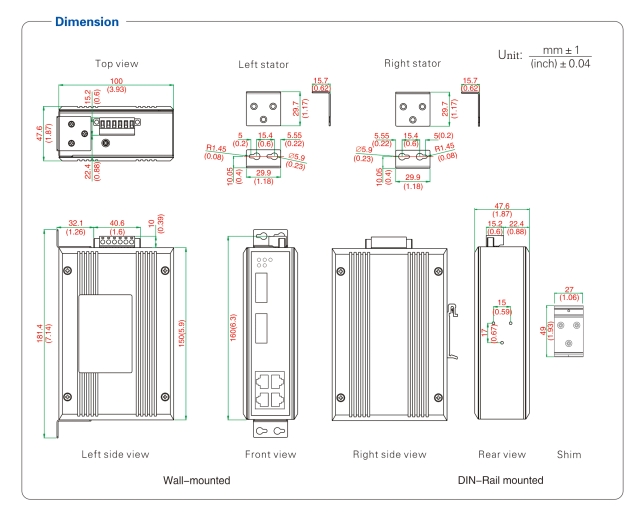

>>Mechanical Dimension
Dimension (W x H x D): 150mm x 47.6mm x 100mm
Weight: 745g
Packaging dimension: 250mm x 205mm x 55mm
>>Operating Environment
Operating temperature: -40 ~ 85°C
Storage temperature: -40 ~ 85°C
Relative humidity: 0~95% (non-condensing)
>>Industrial Standards
EMI:
FCC Part 15 Subpart B classA，EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
