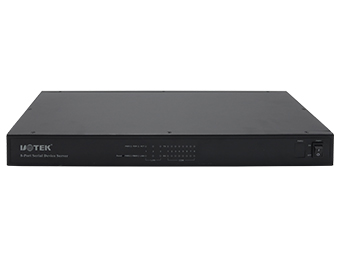

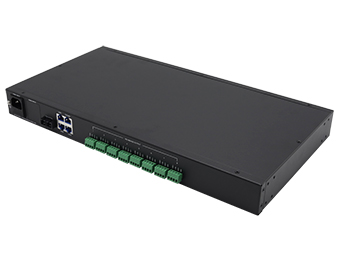

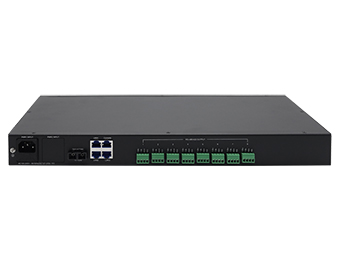

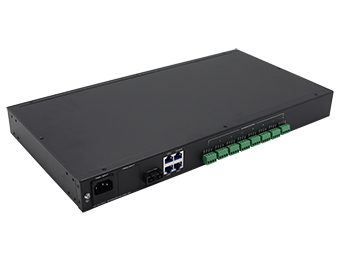

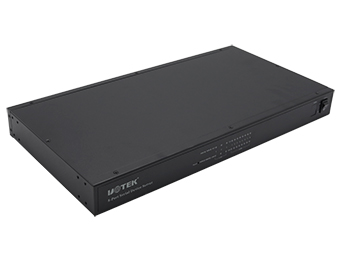

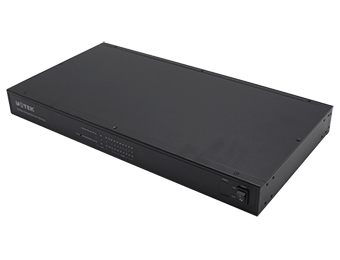

UOTEK 10/100M TCP/IP to 8-Port RS-485/422 Isolated Serial Device Server

UT-6008M-I serial device server provides serial port isolation to network function, which can convert RS-485/422 serial port to TCP/IP network interface and realize bidirectional transparent data transmission between RS-485/422 serial port and TCP/IP network interface. It enables serial devices to have TCP/IP network interface function immediately and supports IEEE802.3AF standard (optional), which can be directly powered by network cable and connected to network for data communication, greatly extending the communication distance of serial devices.

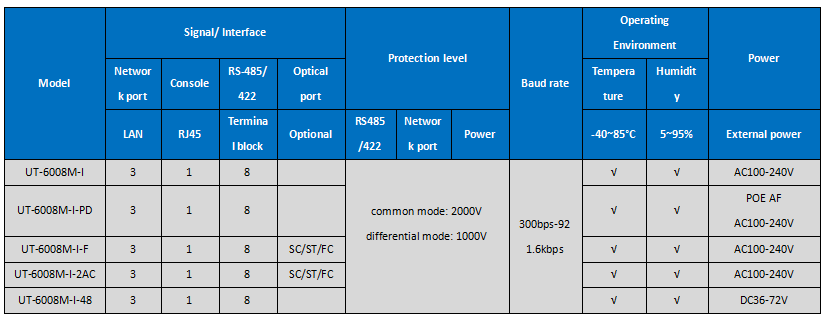

● CPU: 150MHz

● Memory: data cache space per port ≥ 60KB

● Network port: RJ45 interface 10/100M (embedded 2KV electromagnetic isolation, surge 10/700us common mode: 2000V/differential mode 1000V) auto -MDI/MDI-X

● POE standard: support IEEE802.3AF standard (optional)

● Network protocols: IP, ICMP, UDP, TCP, HTTP, TELNET, DNS, DHCP

● System support: Windows /XP/2003/win7/win8/win10 32/64bit

● Operation modes: VCOM, TCP SERVER, TCP CLIENT, UDP, Serial Telnet Mode , Remote Pair mode, RFC 2217, Modbus TCP server, Modbus TCP client

● Host number: 4 hosts can be connected at the same time

● Configuration method: Web browser, VCOM Utility, Telnet

● Number of serial ports: 8 channels, 3.81-4PIN terminal output

● Serial port protection: RS-485/422 surge 10/700us common mode:2000V/differential mode 1000V

● RS-485 pull-up/pull-down resistance: 680 Ω, 4.7 KΩ

● RS-485 terminal resistance: 120 Ω

● Isolation voltage: 2.5 KV rms for 1 minute

● Baud rate: 300-921600bps

● Parity bits: None, Odd, Even, Mark, Space

● Data bits: 7, 8

● Stop bits: 1, 1.5, 2

● Flow control: RTS/CTS, XON/XOFF,

● Supply voltage: 100-240VAC, POE power supply (optional), surge 1.2/50us common mode: 2000V/ differential mode 1000V

● Electrostatic protection: 6KV for whole machine contact, 8KV for air

● Operating current: 15mA@220VAC

● Power supply interface: 3PIN pin AC socket

● Operating temperature: -40 ~ 85°C

● Storage temperature: -40 ~ 85°C

● Relative humidity: 5 ~ 95%RH, no condensing

● Safety certification

EMI:

EN 55022 Class A, FCC part 15 Subpart B Class A

EMS

EN 61000-4-2 ESD: contact 6 kV: air 8 kV

EN 61000-4-3 RS: 3 V/m(80 MHZ to 1 GHz)

EN 61000-4-4 EFT: Power 4 kV: Signal 2 kV

EN 61000-4-5 Surge: AC 2 kV (AC models): DC 2 kV(HV models): Signal 2 kV

EN61000-4-6CS:3V

EN61000-4-8

EN 61000-4-11: AC models only Safety: UL 60950-1,

EN 60950-1

EMC:55022/24

Free fall:IEC-68-2-34,IEC-68-2-32

Vibration: IEC-68-2-6

Environmental protection: ROHS

● Reliability: Auto Restart Trigger: Built-in WDT (Watchdog Timer)

● MTBF: 100000 hours
