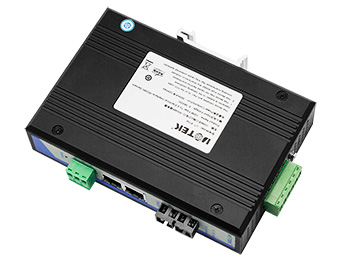

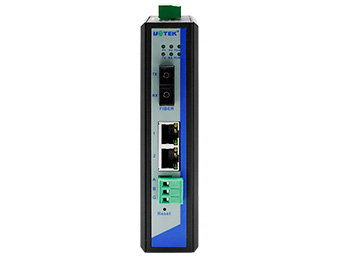

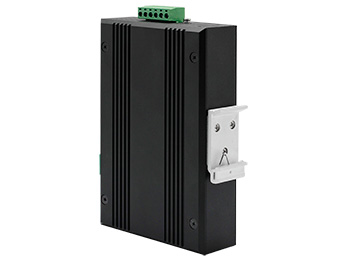

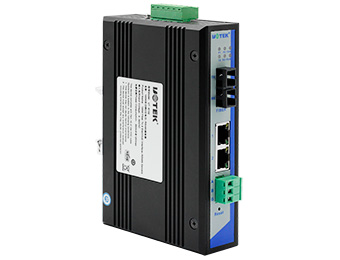

Model： UT-6102
● CPU: 400MHz
● Network Port: RJ45 interface 10/100M ( built-in 1500V electromagnetic isolation, surge 10/700us common mode:2000V/differential mode 1000V, auto- MDI/MDI-X)
● Network Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, SNMP, MQTT, MODBUS.
● Operating Mode:VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT
● Configuration Method: Web browser, VCOM,Telnet
UT-6102 serial device server provides 100M optical port to electrical port and RS-232/485/422 port, which can convert serial port data to TCP/IP and optical fiber interface, realizing bi-directional transparent transmission of data between serial port and TCP/IP network interface. So that serial devices can immediately have TCP/IP network interface function to connect to the network for data communication, greatly expanding the communication distance of serial devices.
● CPU: 400MHz
● Network Port: RJ45 interface 10/100M ( built-in 1500V electromagnetic isolation, surge 10/700us common mode:2000V/differential mode 1000V, auto- MDI/MDI-X)
● Network Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, SNMP, MQTT, MODBUS.
● Operating Mode:VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT
● Configuration Method: Web browser, VCOM,Telnet
● Serial Configuration: Serial configuration: RS485, 2 channels, RS422, 1 channel (RS485 and RS422 can not be used at the same time) RS232, 1 channel
● Serial port protection: 10/700us differential mode 1KV, common mode 2KV
● Baud rate: 300-921600bps (RS485422), 300-115200RS232
● Parity bits: None, Odd, Even, Mark, Space
● Data bits:7,8
● Stop bit:1, 1.5, 2
● Flow control: RTS/CTS, XON/XOFF
● Supply voltage: dual 12-48VDC1.2/50us differential mode 1KV common mode 2KV
● Electrostatic protection: contact 6KV, air 8KV
|
Processor |
32bit 400MHZ |
|
Storage |
128M |
|
Ethernet electrical port |
2-port 10/100M ( built-in 1.5KV electromagnetic isolation ), auto- MDI/MDI-X Ethernet interface, interface mode RJ45 |
|
Ethernet Optical Port |
1*100Base-FX port, interface mode SC/ST |
|
Serial Standard |
RS-232, RS-485, RS-422(RS422 and RS485 channel 1 share a common serial port) |
|
Serial Connector |
7*5.08 terminal |
|
Indicator light |
Power indicator P1, P2, operation indicator RUN, fiber indicator FDX, serial data receiving indicator RX, serial data sending indicator TX |
|

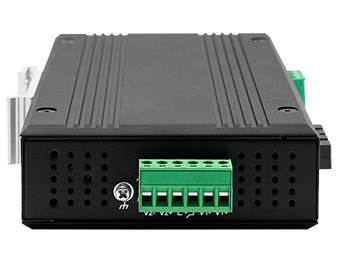

Power connector |
6PIN 5.08 terminal dual-channel power supply, built-in protection against reverse connection, to avoid positive and negative connection error damage equipment |
|
Power range |
DC12~48V |
|
Function buttons |
1 factory reset button RESET |
|
Max. power consumption |
3W |
|
Housing |
Metal housing, protection level IP30 |
|
Operating environment |
Storage temperature: -40~85°C Operating temperature: -40~85°C Relative humidity: 5 ~95% (Non-condensation) |
|
Dimensions L×W×H |
161mm×91mm×37mm（Without mounting parts） |
|
Net. Weight |
350g |
