Model： UT-2088D
● Standard RS-323 input interface (RS-485, TCP/IP interface optional)
● Standard DB25 output interface
● 32-channel opto-isolated relay output
● Power input: AC100-240C/50`60HZ
● Switching output with terminal block
● Power consumption: 12W max.
● Maximum contact capacity (DC): 110VDC 0.3A 30VDC 1A
● Maximum contact capacity (AC):125VAC 0.3A
● With communication indicator indication
● Operating environment: -25~70°C
● Relative temperature of 5 ~ 95%

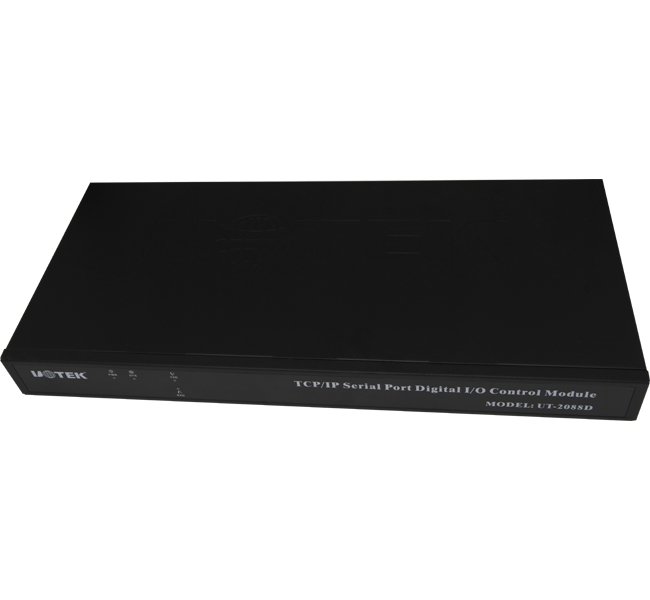

UT-2088D 32-channel opto-isolated relay output, each data output channel is similar to several personal computer interfaces, using external 10/100M Ethernet, RS-232 and RS-485 opto-isolated communication interfaces, this control box is very easy to use the program to control the function of those outputs, plus a simple drive line to drive external devices ( For example: pneumatic components, external relay switches, remote control interface instruments, stepper motor control, etc.).
|
Model |
Signal/ Interface |
Protection level |
Baud rate |
Operating Environment |
Power |
||||
|
RS232/485/422 |
I/O |
Temperature |
Humidity |
||||||
|
DB9 |
DB25 Male |
RS-232/485/422 |
-25~70℃ |
-40~85℃ |
5~95% |
plug and play |
External power |
||
|
UT-2088D |
√ |
√ |
600W Surge |
1200bps~19200bps |
√ |
|
√ |
|
AC100-240V |
Technical Parameters
● Standard RS-323 input interface (RS-485, TCP/IP interface optional)
● Standard DB25 output interface
● 32-channel opto-isolated relay output
● Power input: AC100-240C/50`60HZ
● Switching output with terminal block
● Power consumption: 12W max.
● Maximum contact capacity (DC): 110VDC 0.3A 30VDC 1A
● Maximum contact capacity (AC):125VAC 0.3A
● With communication indicator indication
● Operating environment: -25~70°C
● Relative temperature of 5 ~ 95%
Interface Definition
|
DB9 Pin Assignment |
RS-232 |
RS-485 |
|
1 |
N/C |
RS-485+ |
|
2 |
RXD |
RS-485- |
|
3 |
TXD |
N/C |
|
4 |
N/C |
N/C |
|
5 |
GND |
GND |
|
6 |
N/C |
N/C |
|
7 |
N/C |
N/C |
|
8 |
N/C |
N/C |
|
9 |
N/C |
N/C |
