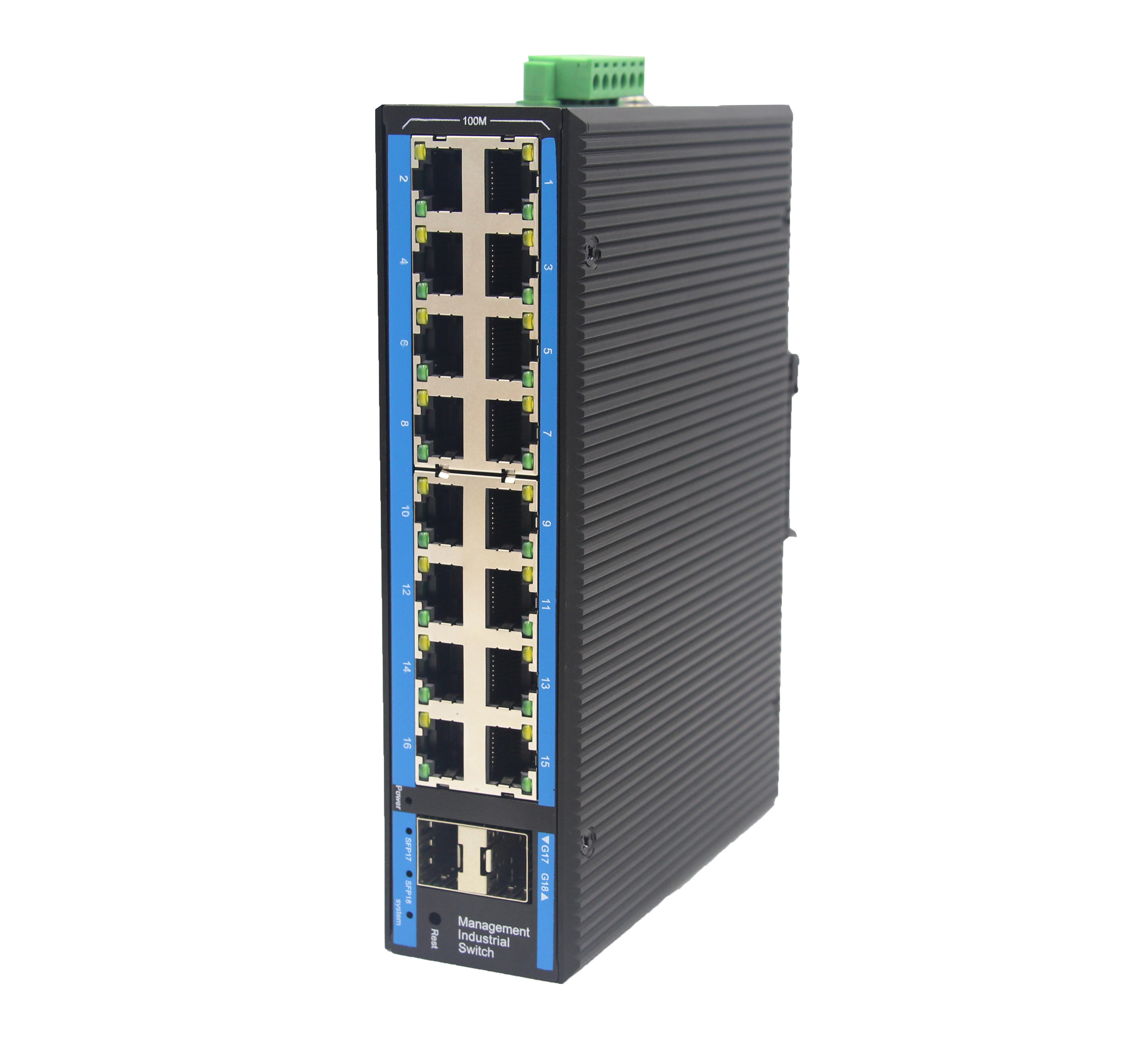

Model： UT-N62216GFS-SFP
● Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics
● Ensure reliable data transmission and long lifecycle
● Support full-duplex or half-duplex mode with auto-negotiation capability
● Network port supports fully automatic cross-identification
● Built-in store-and-forward mechanism, supports multiple protocols
● Support Port-based VLAN for easy network planning
● Support STP/RSTP to ensure network security
● Management function: support WEB management mode
UT-N62216GFS-SFP series managed industrial Ethernet switches are FCC, CE and ROHS compliant. It supports 2 Gigabit optical ports and 16 100M electrical ports, and supports Ethernet Layer 2 protocols required by industrial sites to ensure the stability of communication networks; this series of switches adopts low power consumption and fanless design to ensure no noise interference, and supports -40~80℃ operating temperature and good EMC electromagnetic compatibility performance to ensure stable operation in harsh industrial environments, providing safe and reliable solutions for factory automation, intelligent transportation It provides a safe and reliable solution for factory automation, intelligent transportation, video surveillance and other industrial applications to build a fast and stable network terminal access network.
|
Item |
UT-N62216GFS-SFP |
|
Product Name |
Managed 18-port Industrial Ethernet Switch |
|
Hardware Specification |
|
|
Interface |
|
|
Interface description |
16 RJ45 ports + 2 fiber optic ports |
|
RJ45 port |
10/100M auto-detection, full/half duplex MDI/MDI-X adaptive |
|
Fiber port |
1000BaseFX port (SFP slot) |
|
LED Indicator Light |
|
|
LED indicator light |
Power indicator: PWR Interface indicator: Electric port, optical port (Link/ACT) |
|
Switching Performance |
|
|
Forwarding rate |
6.6Mpps |
|
Transmission mode |
Store-and-Forward |
|
MAC address |
4K |
|
Buffer size |
2.75Mbit |
|
Backplane bandwidth |
8.8G |
|
Switching latency |
<10μs |
|
Power Requirement |
|
|
Input voltage |
DC12 ~ 52V Dual power redundancy backup |
|
Access terminal |
Phoenix terminal |
|
Power consumption |
<10W |
|
|
Support dual power redundancy |
|
|
Support built-in overcurrent 4.0A protection |
|
|
Support reverse connection protection |
|
Operating Environment |
|
|
Operating temperature |
-40 ~ 80°C |
|
Operating humidity |
5 ~ 95% |
|
Storage temperature |
-40 ~ 85°C |
|
Storage humidity |
5 ~ 95% (no condensing) |
|
Mechanical Characteristic |
|
|
Housing |
IP40 protection level, metal housing |
|

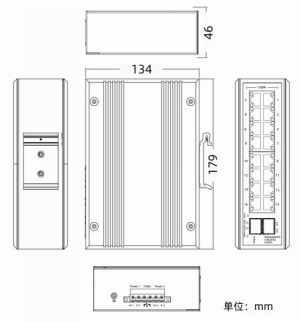

Dimension |
179 x134 x 46mm (W x D x H) |
|
Weight |
820g |
|
Installation method |
DIN rail/ wall-mounted |
|
Ethernet Standard |
|
|
Standard |
IEEE802.3-10BaseT, IEEE802.3u-100BaseTX/100Base-FX, IEEE802.3x-Flow Control, IEEE802.3z-1000BaseLX, IEEE802.3ab-1000BaseTX, IEEE802.1D- Spanning Tree Protocoll, IEEE802.1w-Rapid Spanning Tree Protocoll, IEEE802.1Q-VLAN, IEEE802.1Q -VLAN Tagging, IEEE802.1p -Class of Service, etc. |
|
Industry Standard |
EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A EMC : IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±12kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT) : Network port : ±2kV CM//±1kV DM ; IEC(EN)61000-4-5(Surge) : Network port : ±2kV CM//±1kV DM ; IEC(EN)61000-4-6(RF conduction) : 3V(10kHz～150kHz),10V(150kHz～80MHz) IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock : IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
