Product name:

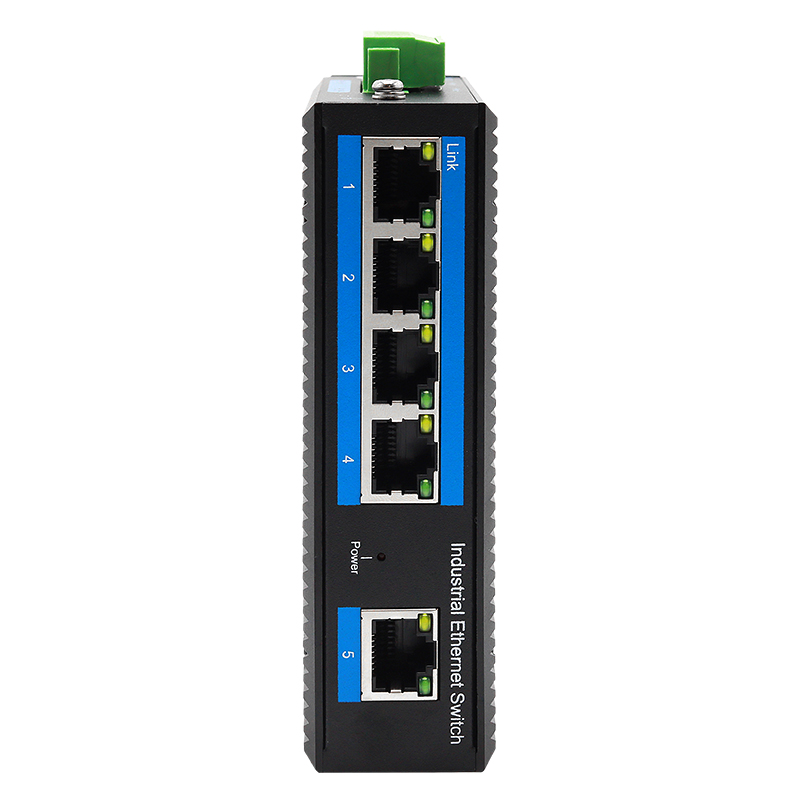

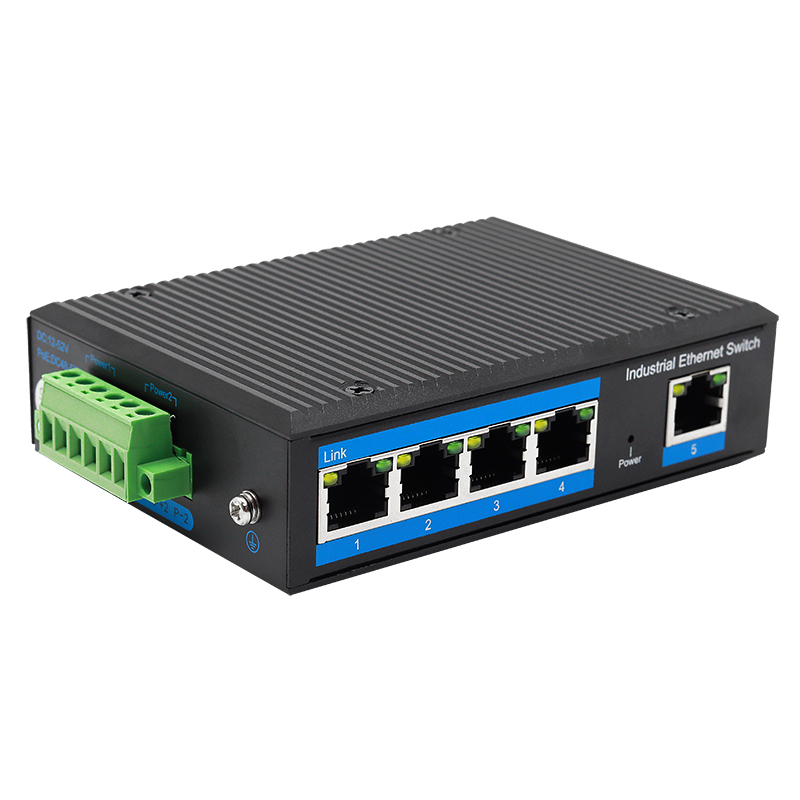

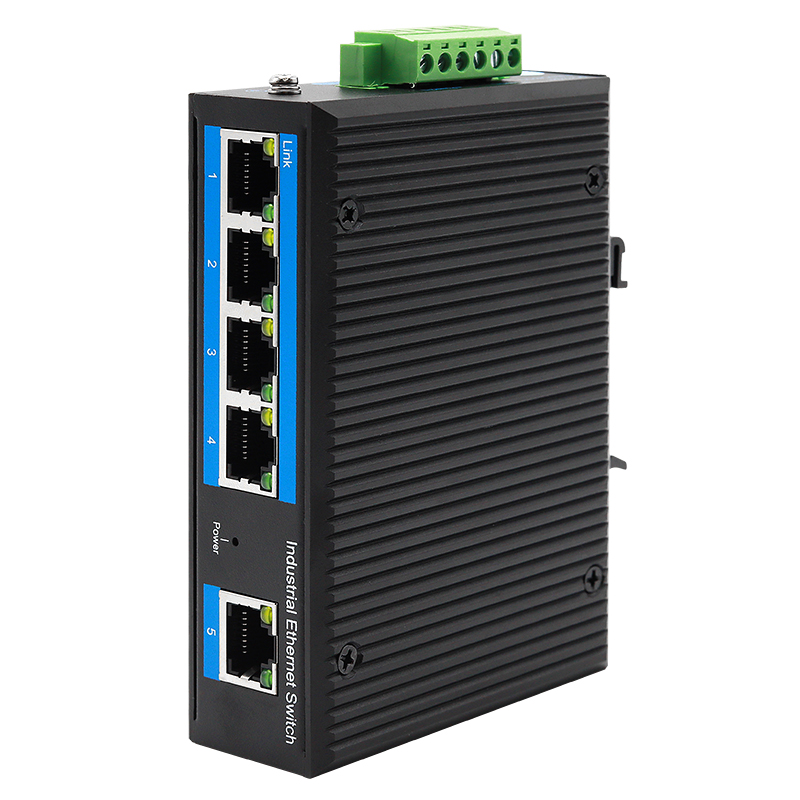

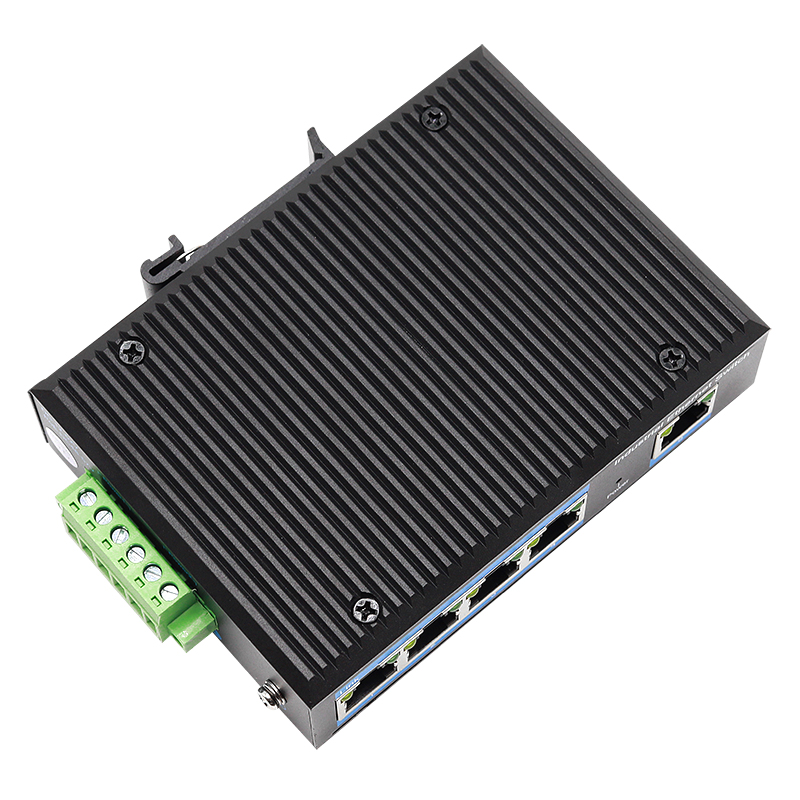

Unmanaged 5 Port Full Gigabit POE+ Switch

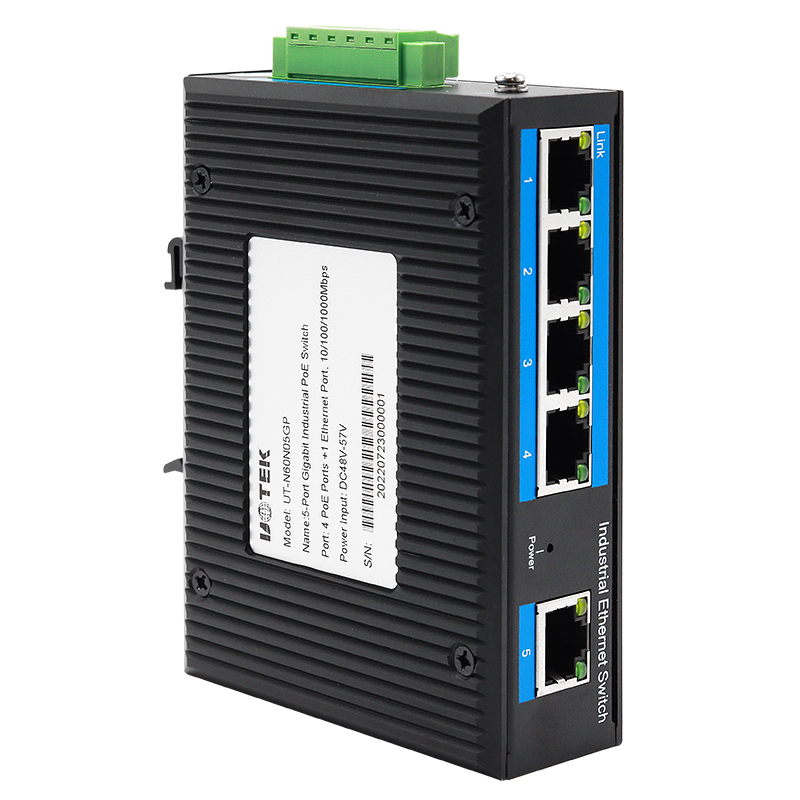

Model: UT-N60N05GP

  •    Adopt high quality optoelectronic integrated modules to provide good optical and electrical characteristics
  •    Ensure reliable data transmission and long lifecycle
  •    Support full-duplex or half-duplex mode with auto-negotiation capability
  •    Network port supports fully automatic cross-identification
  •    Storage and forwarding mechanism is built-in and supports multiple protocols
  •    Compliant with industrial-grade operation standards, with an average trouble-free operation of more than 300,000 hours

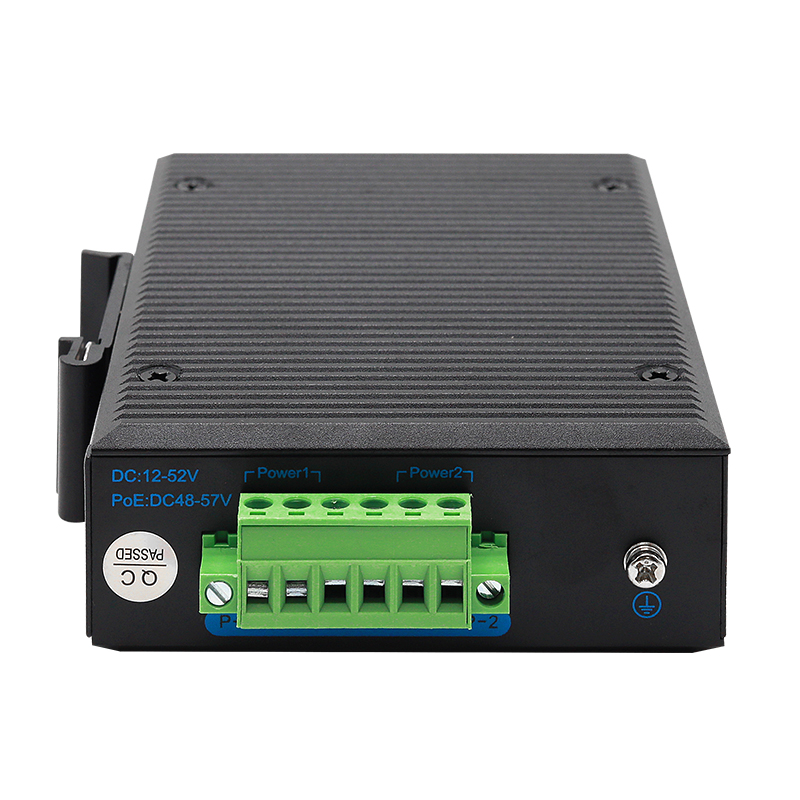

  •    Working power supply: DC 48-57V with reverse connection protection
  •    Lightning surge protection (power supply): 5000A (8/20μs)


1 Gigabit uplink + 4 Gigabit downlink industrial Ethernet POE switch, supporting 1 10/100/1000Base-TX uplink and 4 100Base-T/1000Base-TX downlink POE ports. The UT-N60N05GP switch has an operating temperature range of -40°C to 80°C. It is super rugged and can adapt to various harsh environments and can be easily placed in compact control boxes. The rail mounting features, wide temperature operation, IP40 rated housing and LED indicators make the UT-N60N05GP a plug-and-play industrial grade device that provides a reliable and convenient solution for networking Ethernet devices.


Item

UT-CG1005PM

Product Name

Gigabit 5-port Industrial Ethernet POE Switch

Hardware Specification

Interface

RJ45 port

5*RJ45, 10/100/1000BaseT(X) auto-detection, full/half duplex MDI/MDI-X

PIN

V+ ,V+, V-,V- correspond to pin 1,2,3,6 (default)

LED Indicator Light

LED indicator light

Power indicator: PWR

Interface Indicator : Electric Port (Link)

Switching Performance

Forwarding rate

10.5Mpps

Transmission mode

Store-and-Forward

MAC address

2K

Buffer size

1.2Mbit

Backplane bandwidth

14G

Switching latency

<10μs

Power Requirement

Input voltage

48 to 57V DC

Power consumption

<3W

Operating Environment

Operating temperature

-40 ~ 80°C

Operating humidity

5 ~ 95%

Storage temperature

-40 ~ 80°C

Storage humidity

5 ~ 95% (no condensing)

Mechanical Characteristic

Housing

IP40 protection level, metal housing

Dimension

118 x 85.7 x 33.5 mm (W x D x H)

Weight

360g

Installation method

DIN rail/ wall-mounted

Ethernet Standard

Standard

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab1000Base-T;IEEE802.3z 1000Base-X;IEEE802.3x; IEEE802.3af; IEEE802.3at;

POE Standard

Standard PoE : IEEE802.3af/ IEEE802.3at

PoE port : 1-4 ports support PoE

Output Power :

Max. power 15.4W (IEEE 802.3af)

Max. power 30W (IEEE 802.3at)

POE port auto recognition af/at

Industry Standard

EMI : FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS :

IEC(EN)61000-4-2(ESD) : ±8kV contact discharge, ±12kV air discharge

IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT) : Power line: ±2kV ; Data line: ±1kV

IEC(EN)61000-4-5(Surge) : Network port : ±2kV CM//±1kV DM ;

IEC(EN)61000-4-6(RF conduction) : 3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(Common mode conduction) : 30V cont. 300V,1s

IEC(EN )61000-4-8

Shock : IEC 60068-2-27

Freefall : IEC 60068-2-32

Vibration : IEC 60068-2-6
