Model： UT-N62424BGS-M-SFP

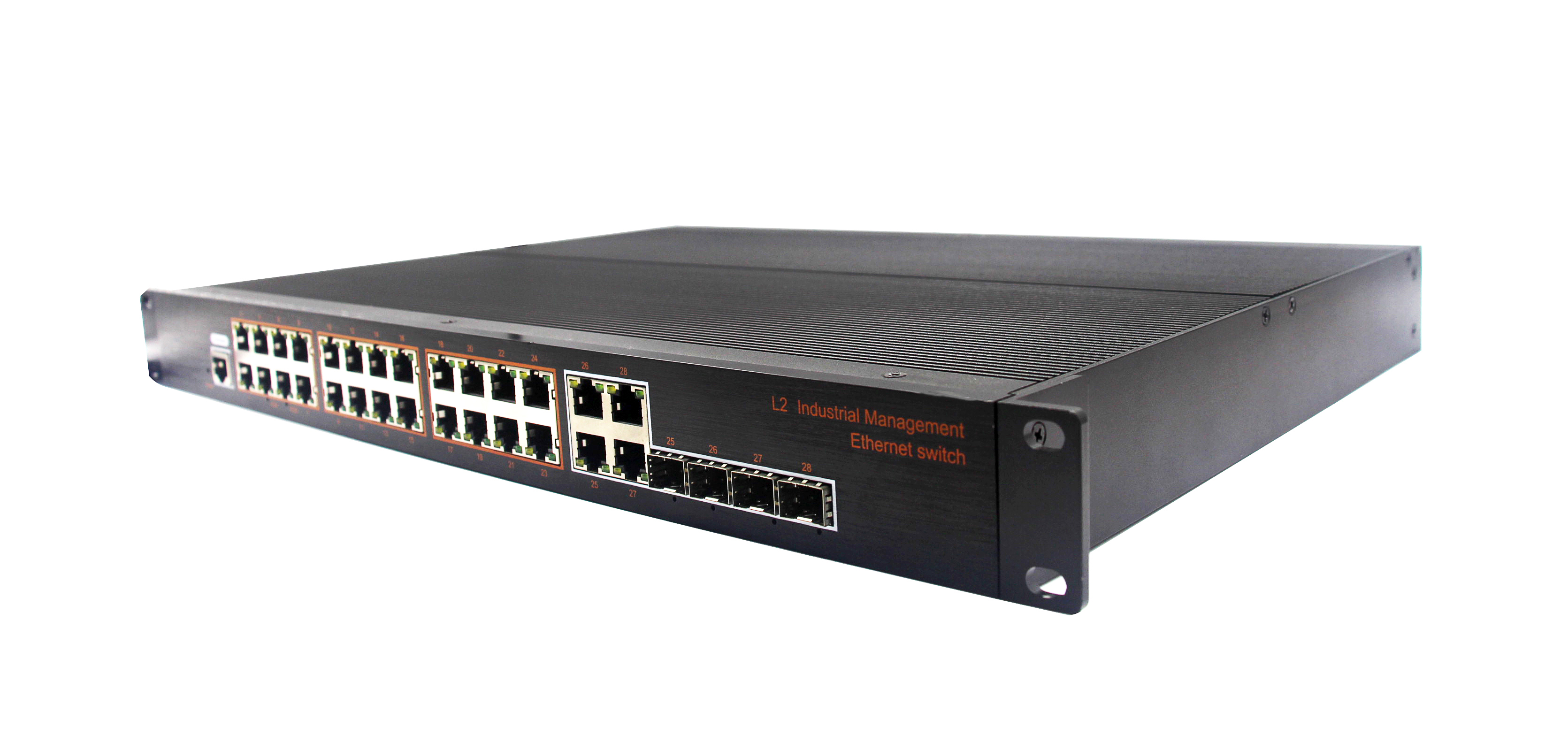

UT-N62428GS-M-SFP is an hardened 32-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 24-port 10/100/1000BASE-TX RJ45 +4G combo delivered in an IP40 rugged, strong case with redundant power system. It’s suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃. It provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.It is packaged in a compact IP40 case that allows bracket mounting to cabinet . It supplies dual power supply: DC36~72V and AC110-240V.
|
Item |
UT-N62424BGS-M-SFP |
|
Product Name |
Managed 24-port Industrial Ethernet Switch |
|
Hardware Specification |
|
|
Interface |
|
|
Interface description |
24 Gigabit electrical ports + 4G combo (either 4G RJ45 or 4G SFP) |
|
RJ45 port |
10/100/1000BaseT(X) auto-detection, 24G port RJ-45 auto-MDI / MDI-X |
|
Fiber port |
1000BaseFX port (SC/FC/ST/SFP optional) |
|
LED Indicator Light |
|
|
LED indicator light |
Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
|
Switching Performance |
|
|
Forwarding rate |
131Mpps |
|
Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
|
MAC address |
16K |
|
Buffer Memory |
16Mbit |
|
Bandwidth |
256Gbps |
|
Power Requirement |
|
|
Input voltage |

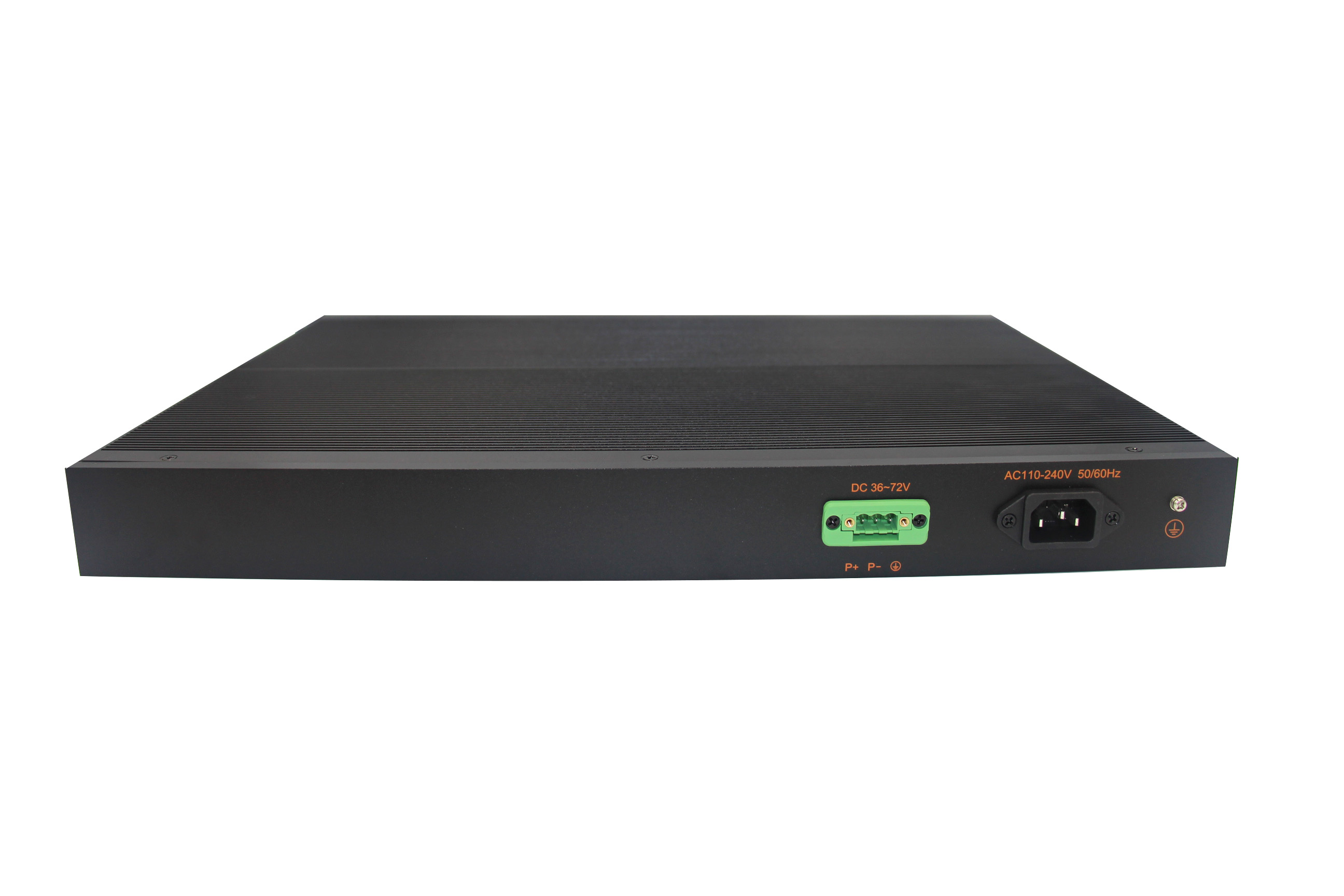

36 to 72V DC and AC110-240V |
|
Power consumption |
<10W |
|
Surge protection |
± 4KV |
|
Operating Environment |
|
|
Operating temperature |
-40 ~ 85°C |
|
Storage temperature |
-40 ~ 80°C |
|
Relative Humidity |
5 ~ 95% (no condensing) |
|
Mechanical Characteristic |
|
|
Enclosure |
IP40 Aluminum housing |
|
Dimension |
442×325×44mm (W x D x H) |
|
Weight |
Product Weight: 3.26KG Packing Weight: 4KG |
|
Installation method |
Bracket mounted |
|
Ethernet Standard |
|
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV
(contact), ±12kV (air) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
