Product name：

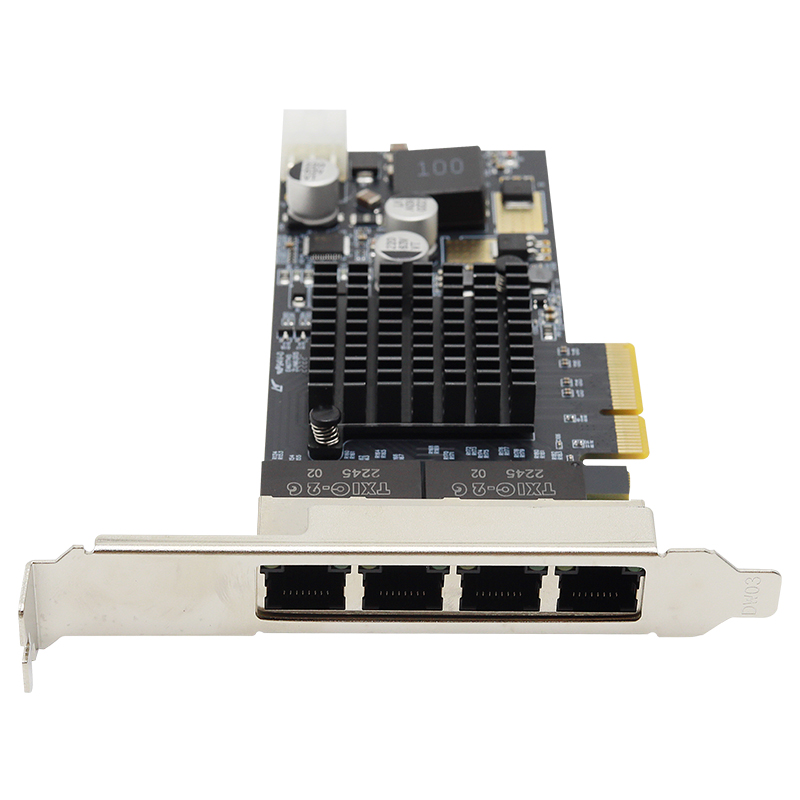

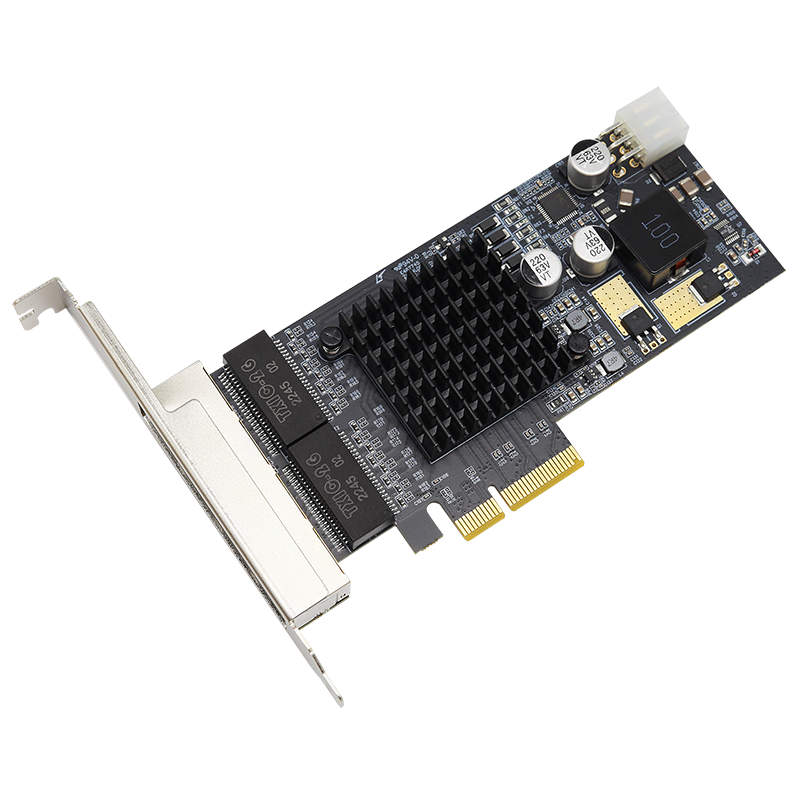

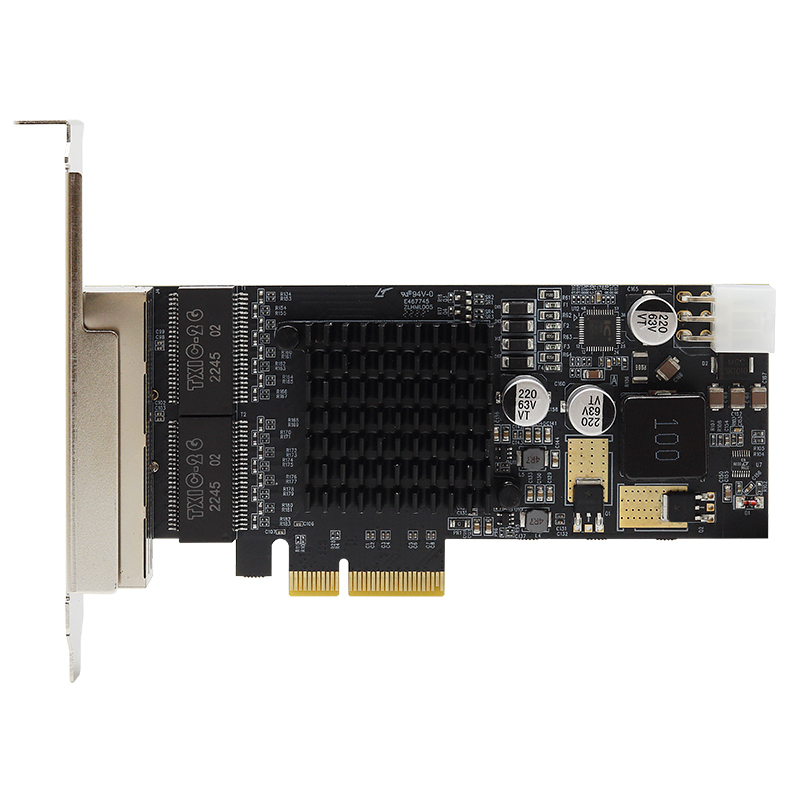

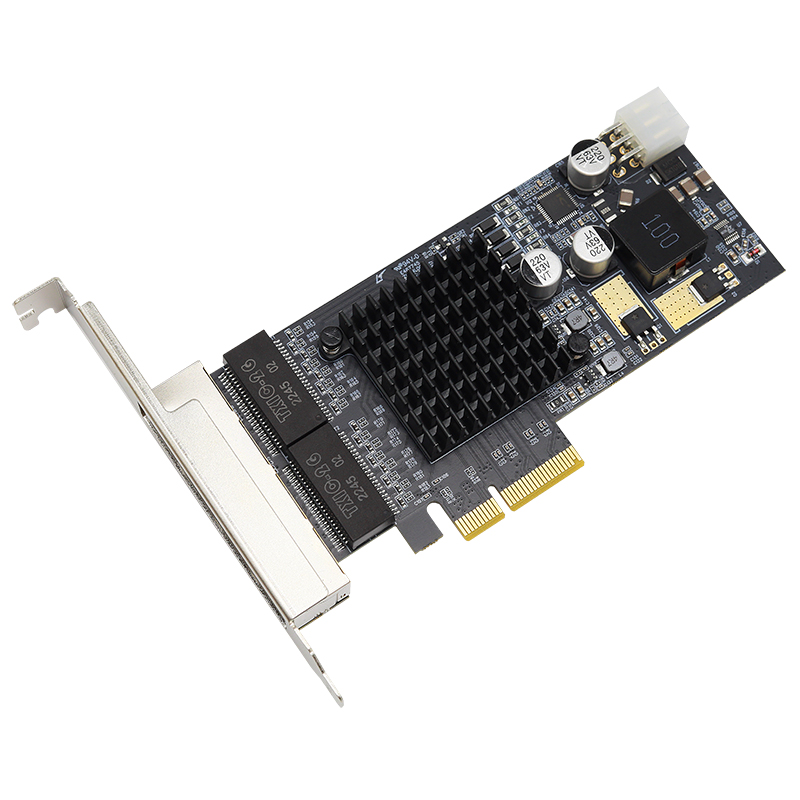

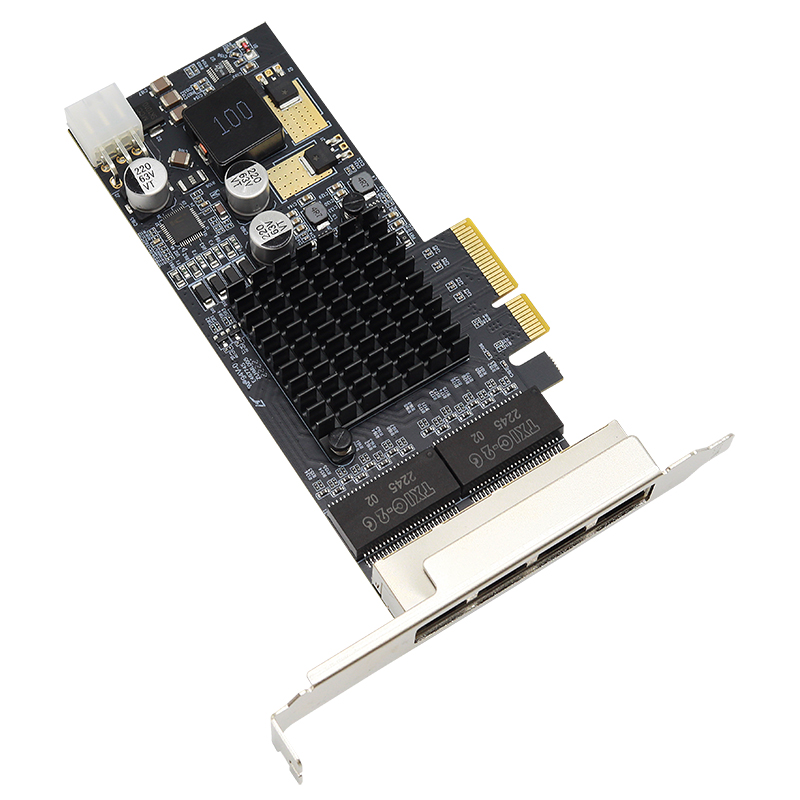

UOTEK 4-Port Gigabit 802.3at PoE+PCIe Server Adapter

Model： UT-N704-POE

● Intel® server-grade GbE Mac Controller

● PCI Express (PCIe) x4 interface, compliant with PCI Express 2. 1 specification

● PXE network boot

● Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

● IEEE 802.3az Energy Efficient Ethernet (EEE)

● Provides installation flexibility for standard and low-profile computers, with a dual-profile design

● Supports 4 Gigabit Ethernet MAC Controller

● IEEE 802.3at compliant with up to 30W power per port

● 12V Mini-Fit 6-Pin power connector input

● Powered device (PD) auto detection and classification

● IEEE 802. 1q VLAN ID tagged

● 9.5K jumbo frame size

● Complies with Microsoft and Linux platforms

Overview Parameter Download Get a quote

UT-N704-POE is a 4-Port Gigabit 802.3at PoE+ PCI Express Server Adapter with a maximum of up to 70 watts of power output over Ethernet cables.Complied with PCI-E standard,it can be installed on any IPC or server motherboard with PCI-E socket to make the IPC or server able to communicate other Ethernet devices and deliver power to PD devices.

Hardware
Bus Type: PCI Express*4
Card Type: Standard/Low Profile
Chipset ID: Intel-I350, ICPlus-IP804
Industry Standards: IEEE 802 .3 10BASE-T, IEEE 802 .3u 100BASE-TX, IEEE 802.3ab
                1000BASE-T,IEEE 802 . 1Q VLANs, IEEE 802.3x Flow Control, IEEE 802.3af
                Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
Interface: 4*RJ45
Power Supply: 12V Mini-Fit 6Pin Power supply
Single PoE Output: 30 watts max
Power over Ethernet
PoE Standard IEEE 802 .3at
PoE Power Supply Type: End-span
PoE Power Supply Type: Per port up to 52V DC, max. 30 watts
Power Pin Assignment: 1/2 (+), 3/6 (-)
PoE Power Budget: 70W maximum with Mini-Fit 6Pin power connector
Maximum number of PDs: 4
Software
OS Compatibility: Windows® 7、8.x、10、11
               Windows Server® 2008 R2、2012、2016
               Linux 2.6.x to 4.x

UT-N704-POE datasheet
