Product name：

UOTEK 1-Port 10G Open SFP+ Network Card

Model： UT-N7091-TX

● Add 10Gbps network connectivity to file or application servers and high-performance

workstations

● Transmit full 10 Gigabit network speeds to a remote terminal over longer

distances than copper cabling

● Intel 82599 chipset with Intel Virtualization Technology for connectivity

● PXE network boot support

● Compliant with IEEE 802.3ae (10GBASE-LR/SR only) and IEEE 802.3aq (10GBASE-LRM)

● Compliant with PCI Express Rev 2.0 specification, using PCIe x8 (or higher) slot

● Up to 15K jumbo frame support

● Complies with Microsoft and Linux platforms

Overview Parameter Download Get a quote

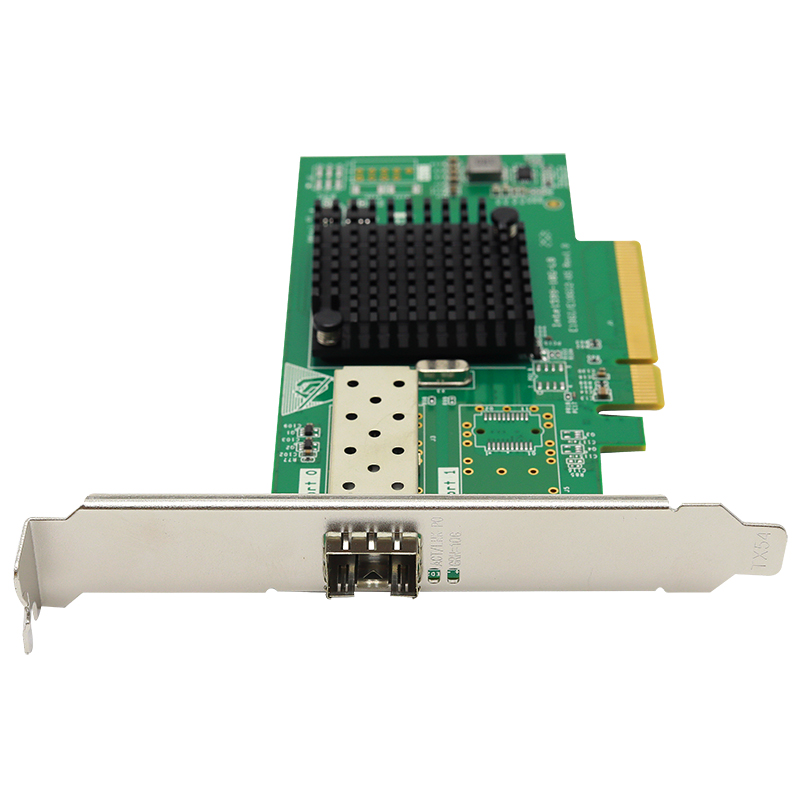

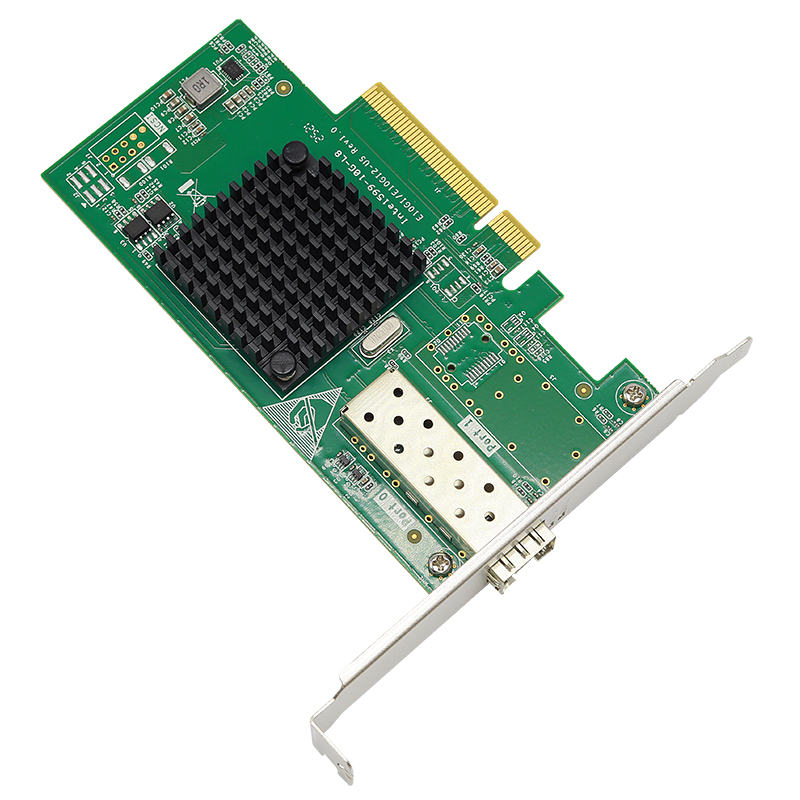

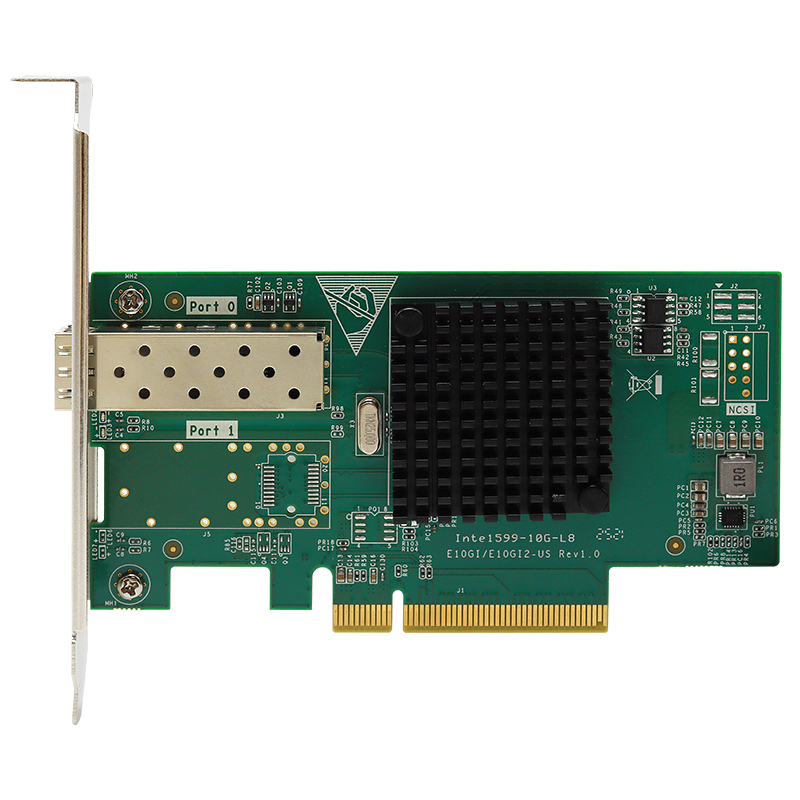

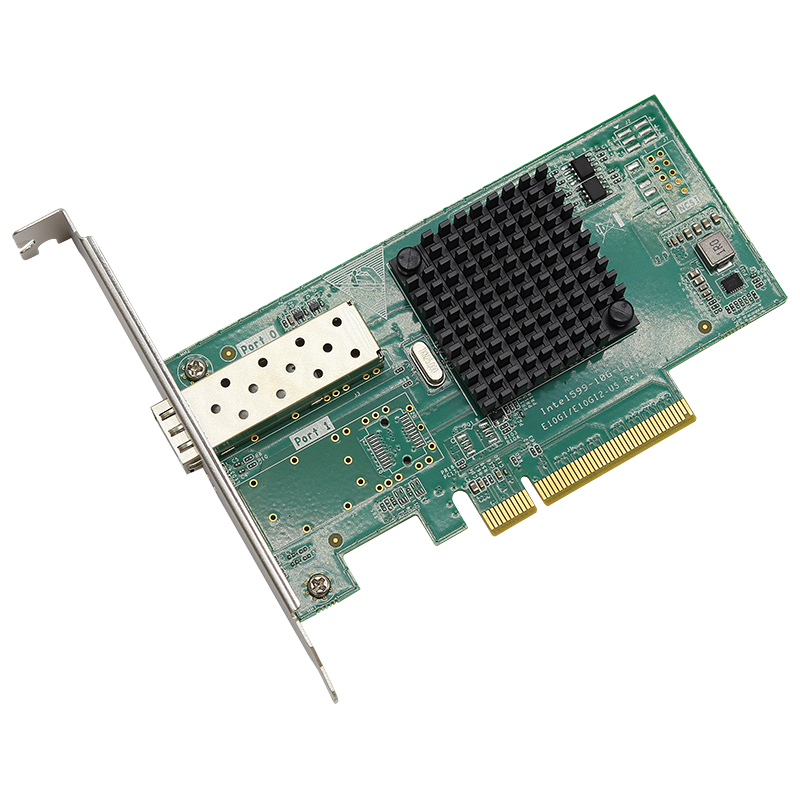

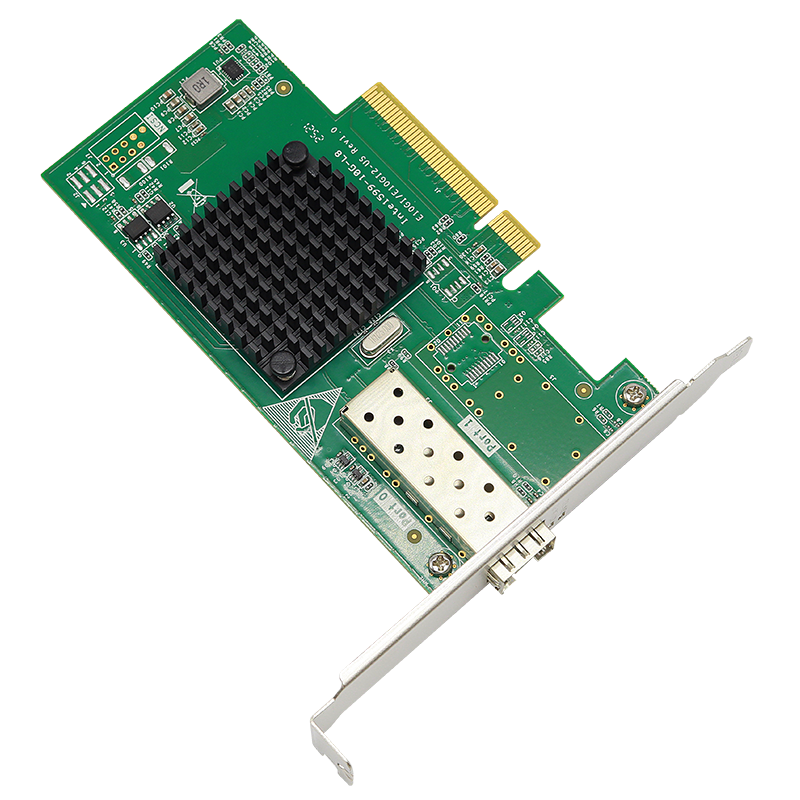

UT-N7091-TX is a fiber network card delivers reliable, high-performance network connectivity, by adding an open SFP+slot to your server or workstation.It provides an easy and cost-effective way to upgrade your server or workstation to a 10Gigabit fiber network using the SFP+module of your choice and gives you the flexibility to use either multi-mode or single-mode fiber.

Hardware
Bus Type: PCI Express x8
Card Type: Standard/Low Profile
Chipset ID: Intel-82599EN
Industry Standards IEEE 802 .3ae (10GBASE-LR/SR only), IEEE 802 .3aq (10GBASE-LRM)
Interface Fiber (10 Gigabit Ethernet)
Ports: 1
Software
Compatible Networks: 10Gbps
Full Duplex Support: Yes
Jumbo Frame Support: 15K max
Maximum Data Transfer: 10Gbps
Rate Supported Protocols: IEEE 802 .3ad (Link Aggregation)
IEEE 802 .3x (Flow Control Support)
IEEE 802 . 1Q (VLAN tagging)
OS Compatibility: Windows® 7、8.x、10、11

Windows Server® 2008 R2, 2012, 2016,2019(Windows drivers are supported in 64-bit OS only)

Linux 2.6.x to 4 .x

UT-N7091-TX datasheet
