Product name：

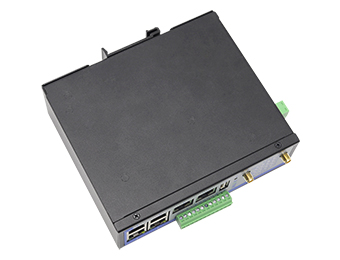

UOTEK 5G Industrial Gateway

Model： G9909

● Designed with industrial-grade chips, suitable for harsh working environments in industrial fields.
● Fanless design, durable and able to withstand harsh environmental conditions in industrial fields.
● Low power consumption, supports +12~48VDC wide voltage power supply, suitable for various on-site power supply methods.
● Protection level up to IP40, with the shell and system safety isolation, suitable for industrial control applications.
● Single-mode dual-card, multi-antenna design, enhances wireless signal, ensures stable operation of various on-site networks.
● Supports multiple VPN protocols (IPsec, L2TP/PPTP, N2N, GRE) to ensure the security of data transmission.
● Multi-level link detection and anti-disconnection mechanism to ensure equipment is always online.
● Embedded watchdog technology, automatic recovery from faults, ensuring stable equipment operation.
● Supports simultaneous access to 5G/4G/3G/2G, WiFi, Ethernet, WLAN wired networks, ensuring faster and more stable network operation.

Overview Parameter Download Get a quote

    G9909 series is a high-speed 5G industrial gateway, which uses wireless cellular network as the bearer network, supports all Netcom 5G/4G/3G/2G networks, and has stronger computing power for the connection between remote devices and data centers. Adopt a secure high-speed wireless data connection and support multiple VPN protocols (OpenVPN, IPsec, L2TP/PPTP, N2N, GRE) to ensure the security of data transmission.
    G9909 series 5G industrial gateways meet the needs of industrial users and can seamlessly connect with various PLC industrial groups. The equipment has the characteristics of multi-functionality, stability and scalability.
    G9909 series 5G industrial gateways, with Python/C/C++ secondary development, can realize customized applications according to the user's own business, reflect the customer's use value, and can meet various industrial application scenarios.

Name	Description
Processor	Quad-core cortex-A7 processor
DRAM capacity	512MB (expandable up to 1GB)
NOR FLASH	16MB (expandable up to 64MB)
NAND FLASH	128MB (expandable up to 256MB)
Emmc	Support 8GB (4GB optional)
Microsd expansion	Expandable up to 128GB
SIM/UIM card port	Support 1.8V/3V SIM/UIM card
Power port	Built-in 15KV ESD protection
Real time clock	2x drawer deck
Standard power	Adopt terminals for power supply, built-in anti-reverse connection protection, to avoid damage to equipment by wrong connection of positive and negative
Power range	Built-in RTC
Power consumption	DC 12V/1.5A
Idle working current	DC 12~48V
Current peak	12W
Shell	600ma@12VDC
Dimensions	1A@12VDC
Weight	Metal shell design, protection level up to IP40
Environmental temperature and humidity	Wxdxh=147.8x124.8x45mm (excluding antenna and mounting parts)
Installation	About 730g
