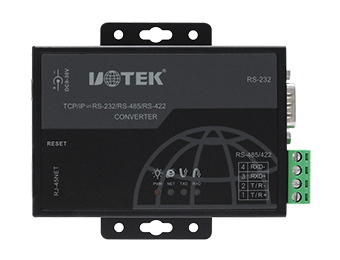

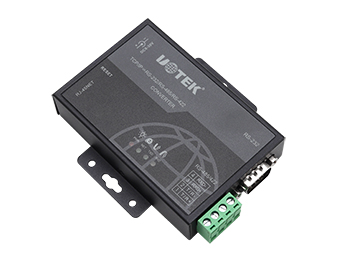

Model： UT-6801C
● Metal housing, suitable for industrial field application
● Wide power input:9~30VDC
● 1* RS232/485/422 port
● Baud rate: 300-921,600bps
● Operation mode: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Modbus TCP SERVER, Modbus TCP CLIENT
● Support firmware WEB upgrade
UT-6801C serial device server supports bi-directional transmission between TCP/IP to RS-232/485/422. It supports ARP, IP, TCP HTTP UDP protocols. It is widely used in the field of industrial automation, IOT, environment monitoring, intelligent transport, etc.
Hardware
|
Processor |
32bit LX6 240MHZ |
|
RAM |
520K |
|
Ethernet interface |
10/100M(Built-in 1.5KV electromagnetic isolation) auto MDI/MDI-X Ethernet interface, RJ45 interface |
|
Serial port |
RS-232/485/422 3 in 1 |
|
Serial port type |
DB9, 4 pin 5.08 terminal block, pluggable |
|
LED Indicator |
Power indicator PWR, Data transmission indicator ACT, Serial port transmit and receive indicator DATA. |
|
Power connector |
DC-005 DC socket |
|
Power range |
DC9~30V |
|
Function buttons |
1 factory reset button RESET |
|
Max. power consumption |
12V@150mA |
|
Housing |
Metal housing, IP30 protection |
|
Operating environment |
Storage temperature: -40~85°C |
|
Operating temperature: -40~85°C |
|
|
Relative humidity: 5% ~95% (non-condensing) |
|
|
Mounting method |
wall mounting |
|
Dimensions L×W×H |
97mm×65mm×22mm（Without mounting parts） |
|
Net. Weight |
115g |
Software
|
Protocol |
ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, MODBUS |
|
Configuration method |
Web browser, VCOM Utility( Windows only) |
|
Operating Mode |
VCOM, MCP, TCP SERVER, TCP CLIENT, UDP, Modbus TCP SERVER, Modbus TCP CLIENT |
|
Baud rate |
300-921600bps |
|
Data Bit |
5,6,7,8 |
|
Stop Bit |
1,2 |
|
Check Bit |
None, Odd, Even |
|
Flow Control |
RTS/CTS,DTR/DSR,XON/XOFF（RS-232 only） |
