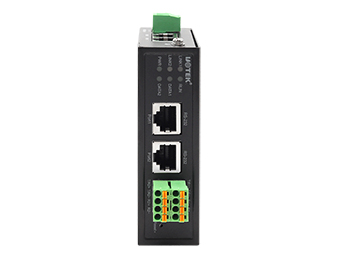

Model： UT-6802A-SW
● 2* RS-232/485/422 port
● 2* 10/100Base-T(X) Ethernet port, sing IP
● Reset button for factory default
● Serial port signal: RXD, TXD, RTS, CTS, GND
● Baud rate: 300~921,600bps, supports baud rate user-defined
● Support MCP, VCOM
● Support ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, MODBUS protocols
● Serial port ±6KV ESD protection, Ethernet port 1.5KVAC isolated protection
● Supports heart-beat package, register package function
● Support WEB firmware upgrade
UT-6802A-SW supports data conversion from serial terminal to TCP/IP. It realizes transparent bi-directional data transmission between RS-232/485/422 port and TCP/IP Ethernet port, which enables the serial device to have networking functions. UT-6802AC integrated with ARP, IP, TCP, HTTP, ICMP, UDP and other protocols. The setup wizard makes you easy to operate it. It is widely used in industrial control, industrial automation, IoT, environmental monitoring, intelligent transportation, dynamic monitoring and other related fields.
Protocol
ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, MODBUS
Operating mode
VCOM, MCP, TCP Server, TCP Client, UDP Client, Modbus TCP Server, Modbus TCP Client
Serial port
RS-232, RS-485, RS-422
Baud rate: 300~921,600bps
Check bit: None, Odd, Even
Data bit: 5, 6, 7, 8
Stop bit: 1, 2
Interface
Power port: 2-pin 5.08 terminal block, with built-in reverse protection
Ethernet port: 2*RJ-45, 1*10/100/Base-T(x)
Serial port: 2* RJ-45 (RS232), 2*3.81 terminal block(RS-485/422)
LED indicator: PWR, RUN, Link1, Link2, DATA1, DATA2, serial port indicators
Button: 1 RESET button
Power requirement
Voltage input: DC12-24V
Power consumption: Max. 1.2W
Mechanical characteristic
IP rating: IP30
Net weight: 248g
Installation: DIN-Rail
Dimension (LxWxD): 100x80x30mm
Transmission distance
RS-232: 15m
RS-485/422: 1,200m
Operating environment
Operating temperature: -40~85℃
Storage temperature: -40℃~85℃
Relative humidity: 5%～95% (non-condensing)
Industrial standard
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC61000-4-2(ESD)
IEC61000-4-3(RS)
IEC61000-4-4(EF)
IEC61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
