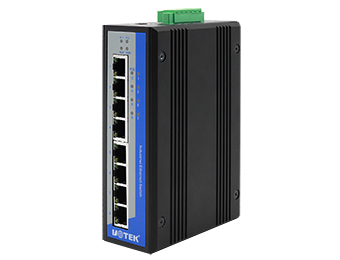

Model： UT-6408M POE
● 8*10/100Base-T(X) POE ports
● IGMP Snooping/MLD Snooping to filter multicast packets
● IEEE 802.1Q VLAN, convenient for network design
● QoS(IEEE802.1p/1Q & TOS/DiffServ), enhance network stability
● UT-ring & STP/RSTP/MSTP network redundancy
● Port isolation under same VLAN
● SNMPv1/v2/v3, ensure different level network security management
● Link aggregation, to optimize network bandwidth
● ACL to enhance flexibility and network management security
● Port mirroring, convenient for online debugging
● Port speed limit\broadcast storm suppression\multicast storm suppression\unknown unicast storm suppression
●l RMON for efficient network monitoring
● LLDP, Link Flap & UDLD
● Loop detection, eliminate port loop effect
● Wide operating temperature: -40℃ to 75℃
UT-6408M POE is a 100M managed POE Ethernet switch, which supports 8 10/100Base-T(X) POE ports(IEEE802.3af/at). Each POE port can provide with the connected device (camera, access point, IP phone) up to 30W power while the external power is limited.
This switch supports CLI/Web/Console port management; it can extend the network structure and power over Ethernet. With good EMC electromagnetic compatibility, it ensures the device working stable in harsh industrial environments. It provides safe and reliable solutions in various industrial applications such as industrial automation, intelligent transportation, and video surveillance.
Standard
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.1Q, IEEE802.1p,
IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.1x, IEEE802.3ad,
IEEE802.1ad, IEEE802.3af/at
Protocol
ARP, ICMP, TCP, HTTP, HTTPS, Telnet, STP/RSTP/MSTP, VLAN, LLDP, UT-Ring, ACL, IGMP-Snooping, SNMPv1/v2/v3, DHCP Server, NTP, Syslog, Link Flap, UDLD, RMON, LACP, DHCP
Flow control: IEEE802.3x, backpressure flow control
Interface
RJ-45 port: 8*10/100Base-T(X), auto detection, full/half duplex, auto-MDI/MDI-X
POE power: +(1, 2) pins, -(3,6) pins
LED Indicator
PWR indicator, RUN indicator, ALM indicator, RJ-45 indicator, POE indicator
Transmission distance
Cat.5e: 100m
Switch property
Forwarding rate: 148,810pps
Transmission mode: Store and forward
MAC address space: 2K
Cache size: 1Mbit
Switching bandwidth: 2G
Maximum frame length:1632B
Power requirement
Power port: 6-pin terminal block
Input voltage: 48VDC (46~57V), redundant input, with reverse polarity protection
Power consumption
Single POE port up to 30W, total power consumption not exceed to 150W
Mechanical characteristic
IP rating: IP40
Installation: DIN-Rail/wall mounting
Size (W x H x D): 150mm x 47.6mm x 100mm
Weight: 936g
Operating environment
Operating temperature: -40°C ~75°C
Storage temperature: -40°C ~85°C
Relative humidity: 0~95% (non-condensing)
Industrial standard
EMI:
FCC Part 15 Subpart B classA, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
