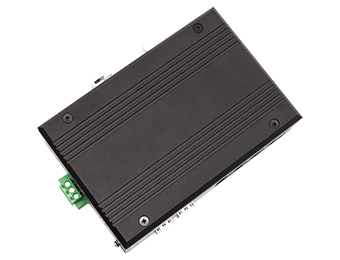

10-Port Unmanaged Full Gigabit Ethernet Switch

UT-6410GC series is an unmanaged full Gigabit Ethernet switch, it supports 2 Gigabit fiber ports and 8 Gigabit RJ-45 ports, plug and play. This series of switches adopts low power consumption & fan-less design, which to ensure no noise interference. It also supports wide operating temperature of -40~75℃; with good EMC electromagnetic compatibility, it ensures the device working stable in harsh industrial environments. It provides a safe and reliable solution for quickly and stably connecting network in various industrial applications such as industrial automation, intelligent transportation, and video surveillance. The switch offers three working modes: Extend, Standard, and VLAN mode, which made it adapting to various complex application environments.

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

Interface

Fiber port: 1000Base-X port (SC/FC/ST/SFP slot)

RJ-45 port: 10/100/1000Base-T, auto-MDI/MDI-X

Transmission distance

Cat 5e: 100m

Optical module:

Single-mode: 1,310nm 20/40/60Km

1,550nm 80/100/120Km

Multi-mode: 1,310nm 2Km

Switch property

Forwarding rate: 1,488,095pps

Transmission mode: Store-and-forward

MAC address space: 4K

Cache size: 1Mb

Bandwidth: 20G

Maximum frame length: 10KB

Power requirement

Input voltage: 12/24/48VDC(10.8~52.8VDC)

Power consumption: 240mA@24Vmax

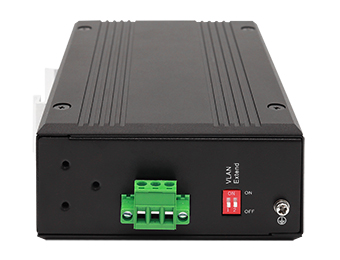

Working mode

Extend mode: ports 1-4 auto-negotiate with a speed reduction of 10M, with the farthest transmission distance of 250 meters.

Standard mode: ordinary switch mode.

VLAN mode: ports 1-8 are isolated from each other and can only communicate with the uplink port; network storm suppression; flow control is disabled.

Mechanical characteristic

IP rating: IP40

Installation: DIN-Rail/wall-mounting

Dimension(W x H x D): 150mmx47.6mmx100mm

Packing size: 250mmx205mmx55mm

Weight: 752g

Operating environment

Working temperature: -40℃~75℃

Storage temperature: -40℃~85℃

Relative humidity: 0~95% (non-condensing)

Industrial standard

EMI

FCC Part 15 Subpart B classA, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
