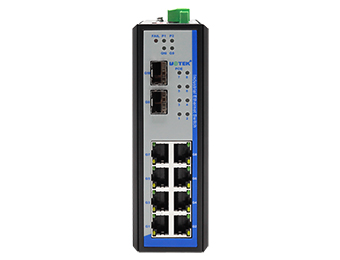

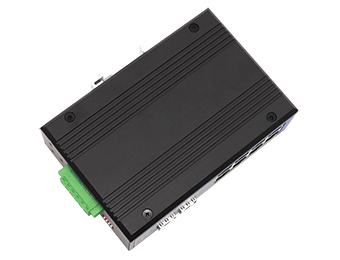

10-Port Unmanaged Full Gigabit POE Ethernet Switch

Model: UT-6410GC POE

● Supports 8 POE ports(IEEE802.3af/at)

● Full-duplex or half-duplex mode, auto-negotiation

● 10/100/1000Mbps, auto-MDI/MDI-X

● Power abnormal status relay output alarm

● Plug and play, easy to use

● Operating temperature: -40~75°C

● Input voltage: 48VDC(46-57V)

UT-6410GC POE series is an unmanaged full Gigabit POE Ethernet switch, it supports up to 8 10/100/1000Base-T cooper ports(IEEE802.3af/at) & 2 1000Base-X fiber ports. Each POE port can provide with the connected device(camera, access point, IP phone) up to 30W power while the external power is limited.

UT-6410GC POE series switch is with high flexibility, it allows you to extend the main bone networking structure and power over Ethernet. It is also with good EMC electromagnetic compatibility; this ensures the switch working stable under harsh industrial environment. It provides solution for industrial automation, intelligent transportation, video surveillance, and other applications. The switch offers three working modes: Extend, Standard, and VLAN mode; and it provides POE watchdog & POE power consumption limitation function, which enable the device to restart while the it is crash during working.

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af/at

Flow control: IEEE802.3x, back-pressure flow control

Interface

Fiber port: 1000Base-X port (SC/FC/ST/SFP slot)

RJ-45 port: 10/100/1000Base-T, auto-MDI/MDI-X

POE power: +(1, 2) pins, -(3,6) pins

Transmission distance

Cat 5e: 100m

Optical module:

Single-mode: 1,310nm 20/40/60Km

1,550nm 80/100/120Km

Multi-mode: 1,310nm 2Km

Switch property

Forwarding rate: 1,488,095pps

Transmission mode: Store-and-forward

MAC address space: 4K

Cache size: 1Mb

Bandwidth: 20G

Maximum frame length: 10KB

Power requirement

Power port: Pluggable 6-pin terminal block

Input voltage: 48VDC(46-57V), redundant input, reverse polarity protection

Power consumption

Single POE port up to 30W, total power consumption not exceed to 125W

Button function

VLAN mode: when enable, ports 1-8 are isolated from each other and can communicate with ports 9-10, so as to stop from network storm suppression; All the ports can communicate each other while disabled.

CCTV mode: Downlink port speed down to 10M, auto-negotiation, transmission distance can be up to 250m, suitable for long distance monitoring power.

POE LIM mode: POE power consumption limitation, each port is limited to 30W(IEEE802.3at power model); while exceed to 30W, the device stop to power for the PD from this port; while exceed to the full-load POE power consumption, there is priority on power port, port 1 is at top priority, and then port 2, 3 till port 8.

POE WDT mode: The switch detects PD working status automatically; it restart the PD automatically while occurring abnormal status.

Mechanical characteristic

IP rating: IP40

Installation: DIN-Rail/wall mounting

Dimension(W x H x D): 150mmx47.6mmx100mm

Packing size: 250mmx205mmx55mm

Weight: 837g

Operating environment

Working temperature: -40℃~75℃

Storage temperature: -40℃~85℃

Relative humidity: 0~95% (non-condensing)

Industrial standard

EMI:

FCC Part 15, Subpart B classA, EN55022 class A

EMS:

IEC(EN)61000-4-2(ESD)

IEC(EN)61000-4-3(RS)

IEC(EN)61000-4-4(EFT)

IEC(EN)61000-4-5(Surge)

IEC(EN)61000-4-6(CS)

IEC(EN)61000-4-8

IEC 60068-2-27(Shock)

IEC 60068-2-32(Freefall)

IEC 60068-2-6(Vibration)
