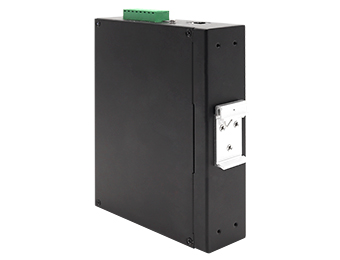

Model： UT-62012GC POE
● Supports 8* Gigabit POE RJ-45 ports + 4* Gigabit fiber ports
● 100Base-FX, 1000Base-X Web selection management
● IGMP Snooping filter multicast packet
● Web configuration for optional 1000Base-FX, 1000Base-X mode types
● IEEE 802.1Q VLAN, QoS
● STP/RSTP/MSTP, private UT-ring
● SNMPv1/v2/v3
● Trap & RMON
● IEEE 802.1x
● Link aggregation, improve network bandwidth
● Port isolation & ACL, enhance network management safety
● Port mirroring, convenient for online debugging
● DHCP server, allocate IP address
● Port transmission rate limitation, broadcast/multicast/uncertain unitcast storm relieving
● LLDP, Link flap, UDLD, DDM
● Power, port abnormal status relay output alarm
● Wide operating temperature: -40~75℃
UT-62012GC POE series are full Gigabit managed industrial POE Ethernet switches. It supports up to 8 Gigabit cooper ports, and 4 Gigabit fiber ports. This is not only increasing the bandwidth, but also improving the transmission rate; it is quite suitable for large-scale networking application.
This switch supports port mirroring, VLAN, IGMP-Snooping, QoS, STP/RSTP/MSTP, ACL, and other management, such like Console, Telnet, Web, SNMP, etc. It provides safe and reliable solution for quick and stable network connecting in various industrial applications such as industrial automation, intelligent transportation, and video surveillance.
Protocol Standard
Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W, IEEE802.1s, IEEE802.3ad, IEEE802.1x, IEEE802.3af/at
Protocol: ARP, ICMP, TCP, HTTP/HTTPS, Telnet, STP/RSTP/MSTP, LLDP, IGMP, SNMPv1/v2c/v3, DHCP Server, UDLD, NTP, RMON, Syslog
Flow control: IEEE802.3x, backpressure flow control
Interface
Fiber port:100Base-FX/1000Base-X(SC/FC/ST/SFP slot)
RJ-45 port: 10/100/1000Base-T, auto-MDI/MDI-X
Console port: RJ-45 connector
POE power: +(1, 2) pins, -(3,6) pins
LED indicator
power indicator, fiber port indicator, RJ-45 indicator, running indicator
Transmission Distance
Cat.5e: 100m
Optical module
Single-mode: 1,310nm 20/40Km
1,550nm 60/80/100/120Km
Multi-mode: 1,310nm 2Km
Switch property
Forwarding rate: 1,488,095pps
Transmission mode: store and forward
MAC address size: 8K
Cache size: 4.1Mbit
Switching bandwidth: 24G
Max. frame length: 10KB
Power requirement
Input voltage: 48VDC(46-57V), reverse polarity protection
Power consumption
Single POE port up to 30W, total power consumption not exceed to 150W
Mechanical characteristic
IP rating: IP40
Weight: <1600g
Installation: DIN-Rail/wall mounting
Mechanical dimension
Device size (W x H x D): 173mm x 43mm x 133mm
Package size: 250mm x 205mm x 108mm
Operating environment
Operating temperature: -40 ~ 75°C
Storage temperature: -40 ~ 85°C
Relative humidity: 0~95% (non-condensing)
Industrial standard
EMI: FCC Part 15, Subpart B classA, EN55022 class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
