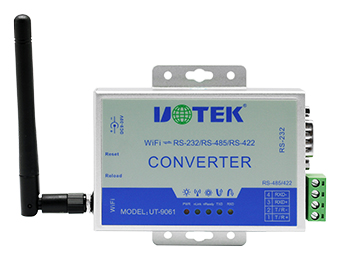

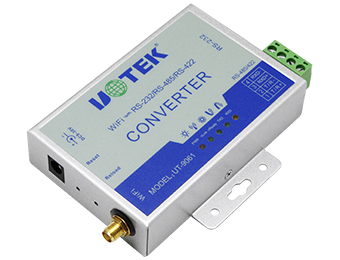

RS-232/485/422 WIFI Server

Model： UT-9061

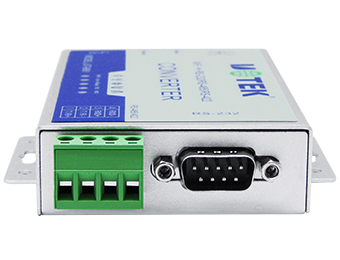

● Communication Port: RS-232, RS-485, RS-422

● Protection Level: 600W surge protection on RS-232 port

3KA lightning protection each line of RS-485/422

2KA lightning protection on power port

● Power Voltage: 9-30VDC

● Current:  9V@200mA

● Standard Transmission Rate: 300~115,200bps

● Operating Mode: Transceiver, asynchronous half-duplex, asynchronous full-duplex

● Antenna Impedance: 50Ω

● Operating Temperature: -40℃~+85℃

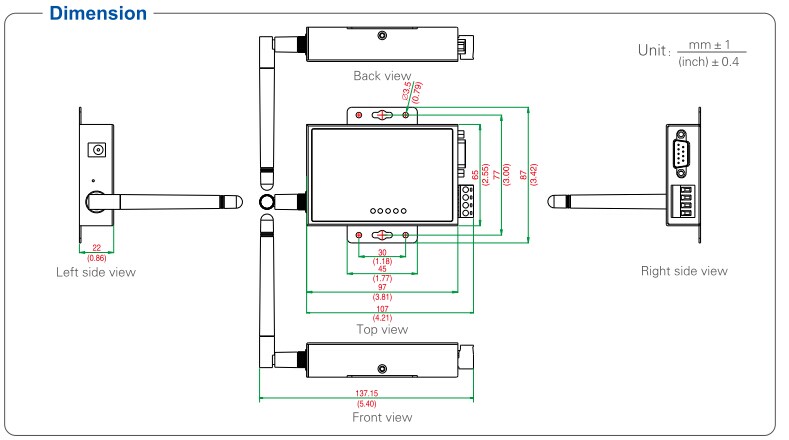

● Dimension: 97×65×22mm(Not included antenna)

● Supports 802.11b/g/n

● Supports STA/AP/AP+STA mode

● External antenna

● AT+ instruction set configuration

● Web configuration

● Heartbeat signals, WIFI connected instruction

● Supports factory default customization
