Product name： UOTEK Modbus Gateway
Model： UT-6801S-GW

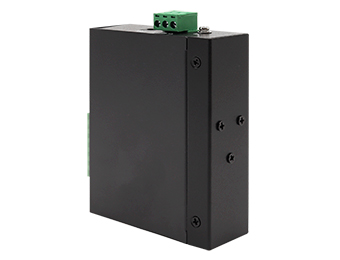

● Made with a metal casing and designed for various installation methods, suitable for industrial control applications.
● Wide power input range (12~57.6VDC), suitable for different field power supply methods.
● One RS232/RS485/RS422 serial port available.
● Supports a wide range of baud rates from 300 to 921600bps, suitable for applications between different devices.
● Supports multiple operating modes: ModbusRTU Master/Slave, ModbusTCP Master/Slave.
● Supports Web firmware upgrade, convenient for special applications in different situations.
Overview
UT-6801S-GW provides Modbus gateway functionality, which can convert data from multiple cascaded Modbus RTU Slaves into Modbus TCP messages and supports access control by multiple Modbus TCP Masters. It can also convert data from multiple Modbus TCP Slaves into Modbus RTU messages and support access control by multiple Modbus RTU Masters.
Parameter
Processor: 32-bit LX6 240MHz microprocessor
Memory: 520K

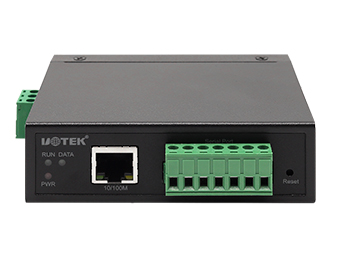

Ethernet interface: 10/100M (embedded with 1.5KV electromagnetic isolation) adaptive MDI/MDI-X Ethernet interface, RJ45 interface
Serial port: RS-232, RS-485, RS-422
Port: 7-pin 5.08 pluggable terminal block
Indicator light: Power indicator PWR, operation indicator RUN, serial port transmission and reception indicator DATA.
Power interface: DC-005 DC jack or 3-pin 5.08 terminal block power supply mode, built-in reverse connection protection to prevent damage to equipment caused by positive and negative connection errors
Power supply range: DC12~57.6V
Function button: One factory reset button RESET
Maximum power consumption: 12V@160mA
Casing: Metal casing, protection level IP30
Installation method: Default Din-rail mounting, fixed plate installation (wall-mounted optional)
Operating environment: Storage temperature: -40~85°C
Operating temperature: -40~85°C
Relative humidity: 5%~95% (non-condensing)
Altitude: Altitude: 0~4000m
Dimensions L×W×H: Size: 100mm×80.8mm×30mm (excluding installation components)
Net weight: Weight: 248g
