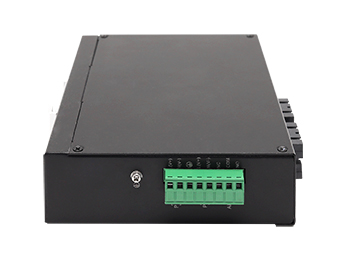

Product name： 12-Port Full Gigabit Unmanaged POE Ethernet Switch
Model： UT-60012GC POE
● Supports up to 12 ports, different combination for RJ-45 ports and fiber ports
● With optional SC/ST/FC/SFP slot
● Full-duplex and half-duplex, auto MDI/MDI-X
● Supports store-and-forward
● Operating temperature: -40℃~75℃
● Compatible with Telecom standard
● No blocking, full linear forwarding, shorten the network delay
● IP40, fan-less design, low power consumption
● Supports power alarm function
UT-60012GC POE series are unmanaged full Gigabit industrial POE Ethernet switches. It supports up to 4 Gigabit fiber ports and 8 Gigabit RJ-45 ports, this enhances the networking flexibility.
Protocol Standard
IEEE802.3af/at, IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x
Interface
Fiber port: 100Base-FX/1000Base-X(SC/ST/FC/SFP slot)
RJ-45 port: 10/100/1000Base-T, auto MDI/MDI-X
POE power: +(1, 2) pins, -(3,6) pins
LED indicator
Power, fiber port, RJ-45 indicators
Transmission Distance
Cat.5e: 100m
Optical module
Single-mode: 1,310nm 20/40Km
1,550nm 60/80/100/120Km
Multi-mode: 1,310nm 2Km
Switch property
Forwarding rate: 1,488,095pps
Transmission mode: store-and-forward
MAC address buffer: 8K
Cache size: 4.1Mbit
Switching bandwidth: 24G
Max. frame length: 10KB
Power requirement
Voltage input: 48VDC(46~57V), with reverse polarity protection
Power consumption
Single POE port up to 30W, total power consumption not exceed to 150W
Mechanical characteristic
IP rating: IP40
Weight: <1,600g
Installation: DIN-Rail/wall mounting
Size(W x H x D): 173×43mm×133mm
Package
Size: 250mm x 205mm x 108mm
Environment
Operating temperature: -40℃~75℃
Storage temperature: -40℃~85℃
Relative humidity: 0~95%(non-condensing)
Industrial Standard
EMI: FCC Part 15 Subpart B class A, EN55022) class A
EMS:
IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
IEC 60068-2-27(Shock)
IEC 60068-2-32(Freefall)
IEC 60068-2-6(Vibration)
